KASTOwa C 7
| Saw type: | Circular saw |
|---|---|
| Cutting option: | Straight cut |
| Automation: | Automatic |
| Materials: | Structural steels, Stainless steel, Tool steel |
| Material width: | 60 mm / 2.36 inch |
| Material height: | 70 mm / 2.76 inch |
Automatic circular sawing machine for fast, accurate sawing of large quantities of cut pieces of steel with tensile strength up to 1400 N/mm², also high alloyed with carbide tipped saw blades.

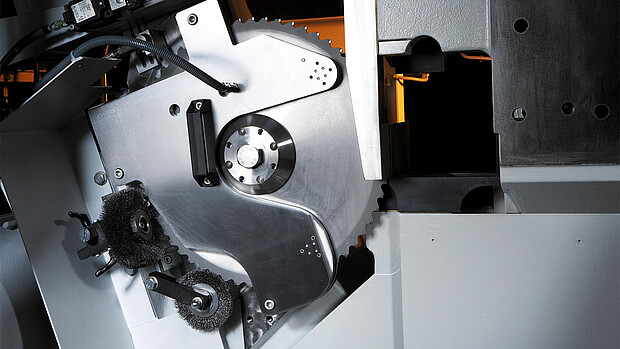

- The unique arrangement of saw gearing and four-point bar clamping guaranties the shortest possible cutting stroke.
- Fast feeding o the bar and hydraulically cushioned length gauge, as well as fast cycling, ensure high production rates of accurate cut pieces and high reliability.
Downloads
Technical Data
| Total connected load | 5.5 kW | 7.38 hp |
| Drive power hydraulic pump | 1.4/1.8 kW | 1.88/2.41 hp |
| Total connected load | 0.12 kW | 0.16 hp |
| Cutting speed, infinitely adjustable, | 35 - 140 m/min | 114.83 - 459.32 ft/min |
| Cutting speed, infinitely adjustable, | 35 - 140 m/min | 114.83 - 459.32 ft/min |
| Cutting speed, infinitely adjustable, | 40 - 60 m/min | 131.23 - 196.85 ft/min |
| Saw blade feed rate, infinitely adjustable | 25 - 1000 mm/min | 0.98 - 39.37 in/min |
| Rapid return | 8000 mm/min | 314.96 in/min |
| Workpiece clamping | ||
| Clamping force, infinitely adjustable | 8000 N | 5900.5 ft/lbs |
| Bar feed | ||

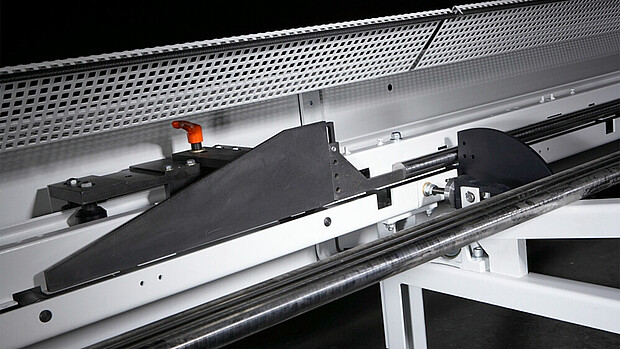

| Bar pusher carriage feed motion | 7.5 - 40 m/min | 24.61 - 131.23 ft/min |
| Rapid return speed | 80 m/min | 262.47 ft/min |
| Length | 1000 mm | 39.37 in |
| Width | 1600 mm | 62.99 in |
| Height | 2050 mm | 80.71 in |
| Material support height above floor | 1000 mm | 39.37 in |
| Weight | 1500 kg | 3306.93 lbm |
| Total connected load | 5.5 kW | 7.38 hp |
| Drive power hydraulic pump | 1.4 / 1.8 kW | 1.88 x 2.41 hp |
| Total connected load | 0.12 kW | 0.16 hp |
| Cutting speed, infinitely adjustable, | 35 - 140 m/min | 114.83 - 459.32 ft/min |
| Cutting speed, infinitely adjustable, | 35 - 140 m/min | 114.83 - 459.32 ft/min |
| Cutting speed, infinitely adjustable, | 40 - 60 m/min | 131.23 - 196.85 ft/min |
| Saw blade feed rate, infinitely adjustable | 25 - 1000 mm/min | 0.98 - 39.37 in/min |
| Rapid return | 8000 mm/min | 314.96 in/min |
| Workpiece clamping | ||
| Clamping force, infinitely adjustable | 8000 N | 5900.5 ft/lbs |
| Bar feed | ||
| Bar pusher carriage feed motion | 7.5 - 40 m/min | 24.61 - 131.23 ft/min |
| Rapid return speed | 80 m/min | 262.47 ft/min |
