KASTOwa M 9

Saw type:Circular saw
Cutting option: Straight cut
Automation:Automatic
Materials: Non-ferrous metals and plastics
Material width: 75 mm / 2.95 inch
Material height: 120 mm / 4.72 inch

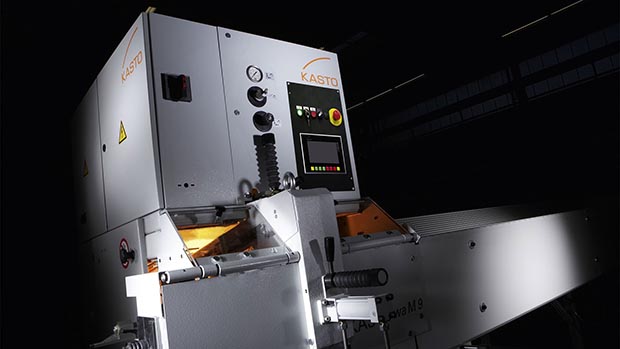

Automatic circular sawing machine for fast, accurate sawing of large quantities of brass and copper with carbide tipped and HSS-saw blades

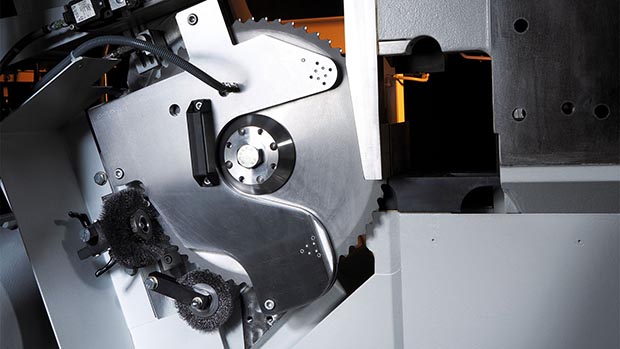

  • The unique arrangement of saw gearing and four-point bar clamping guaranties the shortest possible cutting stroke.

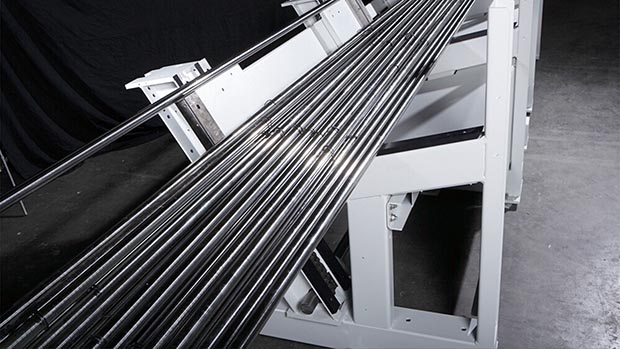

  • Fast feeding o the bar and hydraulically cushioned length gauge, as well as fast cycling, ensure high production rates of accurate cut pieces and high reliability.

Your KASTO Contact

Sales

+49 7841 61-100

kasto(at)kasto.com

Technical Data

Saw blade diameter 250 mm 9.84 in
Saw blade bores 32/4 x 9/50 mm 1.26/0.16 x 0.35/1.97 in
Saw blade clamping flange 110 mm/4.33 in
Cutting range rounds, solid bar, standard and thickwalled tubes 15 - 55 mm 0.59 - 2.17 in
Cutting range rounds, solid bar, thinwalled tubes 15 - 45 mm 0.59 - 1.77 in
Cutting range squares, solid bar and tubes 15 - 45 mm 0.59 - 1.77 in
Cutting range rectangulars, solid bar, min. 15 x 15 mm 0.59 x 0.59 in
Cutting range rectangulars, tubes and profiles, up to 120 x 40 mm 4.72 x 1.57 in

Saw blade diameter 275 mm 10.83 in
Saw blade bores 32/4 x 9/50 mm 1.26/0.16 x 0.35/1.97 in
Saw blade clamping flange 110 mm/4.33 in
Cutting range rounds, solid bar, standard and thickwalled tubes 15 - 70 mm 0.59 - 2.76 in
Cutting range rounds, solid bar, thinwalled tubes 15 - 60 mm 0.59 - 2.36 in
Cutting range squares, solid bar and tubes 15 - 60 mm 0.59 - 2.36 in
Cutting range rectangulars, solid bar, min. 15 x 15 mm 0.59 x 0.59 in
Cutting range rectangulars, tubes and profiles, up to 120 x 55 mm 4.72 x 2.17 in

Saw blade diameter 315 mm 12.4 in
Saw blade bores 32/4 x 9/50 mm 1.26/0.16 x 0.35/1.97 in
Saw blade clamping flange 110 mm/4.33 in 110 mm 4.33 in
Cutting range rounds, solid bar, standard and thickwalled tubes 15 - 90 mm 0.59 - 3.54 in
Cutting range rounds, solid bar, thinwalled tubes 15 - 80 mm 0.59 - 3.15 in
Cutting range squares, solid bar and tubes 15 - 80 mm 0.59 - 3.15 in
Cutting range rectangulars, solid bar, min. 15 x 15 mm 0.59 x 0.59 in
Cutting range rectangulars, tubes and profiles, up to 120 x 75 mm 4.72 x 2.95 in

Length 1000 mm 39.37 in
Width 1600 mm 62.99 in
Height 2050 mm 80.71 in
Material support height above floor 1000 mm 39.37 in
Weight 1500 kg 3306.93 lbm

Drive power saw blade 15 kW 20.12 hp
Drive power hydraulic pump 1.1 kW 1.48 hp
Cutting speed, infinitely adjustable, 200 - 990 m/min 656.17 - 3248.03 ft/min
Cutting speed, infinitely adjustable, 220 - 1100 m/min 721.78 - 3608.92 ft/min
Cutting speed, infinitely adjustable, 225 - 1200 m/min 738.19 - 3937.01 ft/min
Saw blade feed rate, infinitely adjustable 125 - 6000 mm/min 4.92 - 236.22 in/min
Rapid return 10000 mm/min 393.7 in/min
Workpiece clamping
Clamping force, infinitely adjustable 8000 - 2000 N 5900.5 N 1475.12 ft/lbs

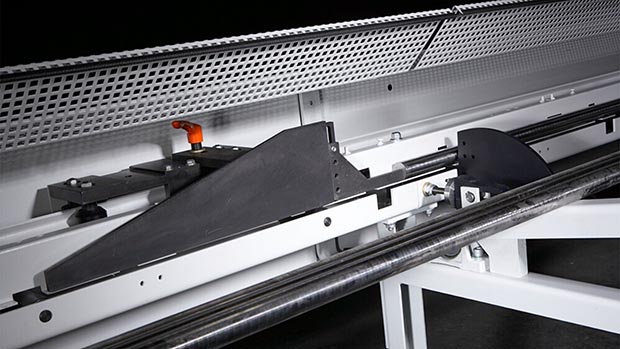

Bar feed
Bar pusher carriage feed motion 7.5 - 40 m/min 24.61 - 131.23 ft/min
Rapid return speed 80 m/min 262.47 ft/min
