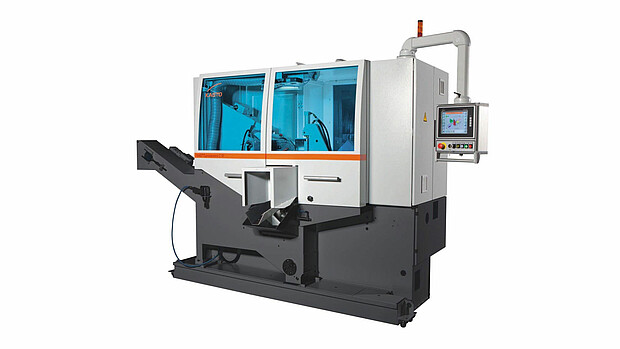

KASTOgripspeed C 10
| Saw type: | Circular saw |
|---|---|
| Cutting option: | Straight cut |
| Automation: | Automatic |
| Materials: | Structural steels, Stainless steel, Tool steel |
| Material width: | 80 mm / 3.15 inch |
| Material height: | 102 mm / 4.02 inch |
High-Performance Automatic Circular Sawing Machine Easy Programming with Gripper Feed Technology and Touch Screen.
- Feed vise technology guarantees long lifetime and low wear
- Easy operation even under rough machine shop conditions with the help of the machine control
- Carbide guides of saw blade (on both sides)

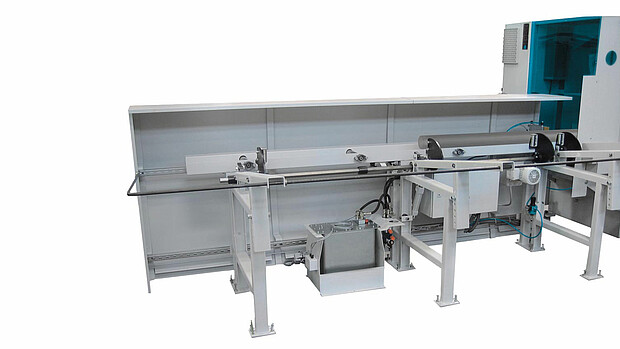

- Automatic work piece infeed via inclined magazine and bar separator
Downloads
Technical Data
| Saw blade diameter 360 mm/14.17 in | ||
| Saw blade bores | 40/4 x 10/90 mm | 1.57 / 0.16 x 0.39 / 3.54 in |
| Saw blade clamping flange | 111250 mm | 4379.92 in |
| Cutting range rounds, solid bar | 15 - 102 mm | 0.59 - 4.02 in |
| Cutting range squares, solid bar | 15 - 80 mm | 0.59 - 3.15 in |
| Cutting range rectangulars, solid bar | 15/15 x 102/80 mm | 0.59 / 0.59 x 4.02 / 3.15 in |
| Shortest cut-off length | 8 mm | 0.31 in |
| Length | 1560 mm | 61.42 in |
| Width | 3026 mm | 119.13 in |
| Height | 2237 mm | 88.07 in |
| Material support height above floor | 1100 mm | 43.31 in |
| Weight | 3200 kg | 7054.79 lbm |
| Drive power saw blade | 11 kW | 14.75 hp |
| Drive power hydraulic pump | 1.5 kW | 2.01 hp |
| Cutting speeds, infinitely adjustable | 17 - 175 m/min | 55.77 - 574.15 ft/min |
| Saw blade feed rate, infinitely adjustable | 10 - 4000 mm/min | 0.03 - 157.48 ft/min |
| Rapid return | 10000 mm/min | 32.81 ft/min |
| Workpiece clamping | ||
| Clamping force, infinitely adjustable | 2000 - 12500 N | 1475.12 ft/lbs |
| Material feed | ||
| Material feed length, individual cut | 500 mm | 19.69 in |
| WidthMultiple feed length | 9999 mm | 393.66 in |
| Shortest remnant length | 75 mm | 2.95 in |
| Max. tolerance of straightness | 2 mm/m | 0.02 in |
