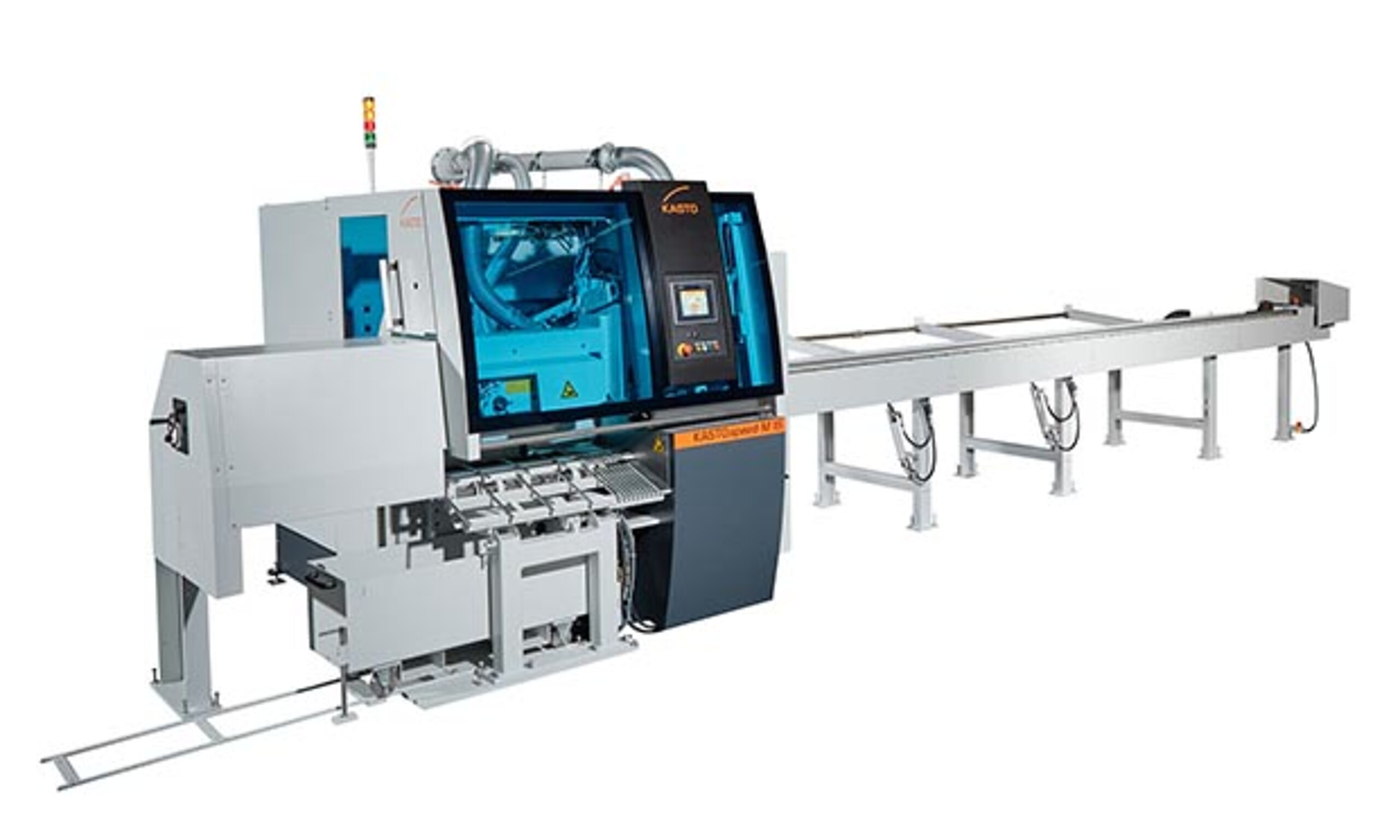

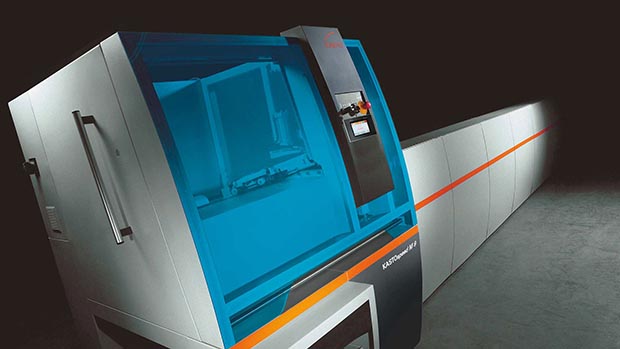

KASTOspeed M 9

Saw type:Circular saw
Cutting option: Straight cut
Automation:Automatic
Materials: Non-ferrous metals and plastics
Material width: 120 mm
Material height: 75 mm

Automatic circular sawing machine for fast, accurate sawing of cut pieces in large quantities of aluminium and aluminium alloys with carbide tipped- and HSS saw blades.

  • Fast and precise cutting of large batches

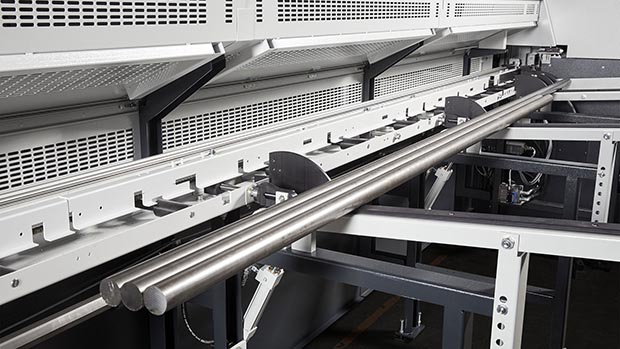

  • Safe work piece infeed using well-proven inclined magazines
  • Automatic separation and loading onto infeed roller conveyor
  • Freely selectable trim cut, remnant recognition as well as automatic sorting of trim cuts and remnants.
  • PLC control and operator panel

Your KASTO Contact

Sales

+49 7841 61-100

kasto(at)kasto.com

Technical Data

Saw blade diameter 250 mm/9.84 in
Saw blade bores 32/4 x 9/50 mm 1.26/0.16 x 0.35/1.97 in
Saw blade clamping flange 110 mm 4.33 in
Cutting range rounds, solid bar, standard and thickwalled tubes 15 - 55 mm 0.59 - 2.17 in
Cutting range rounds, solid bar. thinwalled tubes 15 - 45 mm 0.59 - 1.77 in
Cutting range squares, solid bar and tubes 15 - 45 mm 0.59 - 1.77 in
Cutting range rectangulars, solid bar, min. 15 x 15 mm 0.59 x 0.59 in
Cutting range, tubes and profiles, up to 120 x 40 mm 4.72 x 1.57 in

Saw blade diameter 275 mm/10.83 in
Saw blade bores 32/4 x 9/50 mm 1.26/0.16 x 0.35/1.97 in
Saw blade clamping flange 110 mm 4.33 in
Cutting range rounds, solid bar, standard and thickwalled tubes 15 - 70 mm 0.59 - 2.76 in
Cutting range rounds, solid bar. thinwalled tubes 15 - 60 mm 0.59 - 2.36 in
Cutting range squares, solid bar and tubes 15 - 60 mm 0.59 - 2.36 in
Cutting range rectangulars, solid bar, min. 15 x 15 mm 0.59 x 0.59 in
Cutting range, tubes and profiles, up to 120 x 55 mm 4.72 x 2.17 in

Saw blade diameter 315 mm/12.4 in
Saw blade bores 32/4 x 9/50 mm 1.26/0.16 x 0.35/1.97 in
Saw blade clamping flange 110 mm 4.33 in
Cutting range rounds, solid bar, standard and thickwalled tubes 15 - 90 mm 0.59 - 3.54 in
Cutting range rounds, solid bar. thinwalled tubes 15 - 80 mm 0.59 - 3.15 in
Cutting range squares, solid bar and tubes 15 - 80 mm 0.59 - 3.15 in
Cutting range rectangulars, solid bar, min. 15 x 15 mm 0.59 x 0.59 in
Cutting range, tubes and profiles, up to 120 x 75 mm 4.72 x 2.95 in

Length 1600 mm 62.99 in
Width 1950 mm 76.77 in
Height 2150 mm 84.65 in
Material support height above floor 1100 mm 43.31 in
Weight 2600 kg 5732.02 lbm

Drive power saw blade 25 kW, 50 Hz/24 kW, 65 Hz 33.53 hp, 50 cps/32.18 hp, 65 cps
Drive power hydraulic pump 2.6 / 3.2 kW 3.49 x 4.29 hp
Cutting speed, infinitely variable, for aluminium (250 mm/9.84 in) 680 - 3100 m/min 2230.97 - 10170.6 ft/min
Cutting speed, infinitely variable, for aluminium (275 mm/10.83 in) 750 - 3400 m/min 2460.63 - 11154.86 ft/min
Cutting speed, infinitely variable, for aluminium (315 mm/12.4 in) 850 - 3900 m/min 2788.71 - 12795.28 ft/min
Saw blade feed rate, infinitely adjustable 125 - 7500 mm/min 0.41 - 295.28 ft/min
Rapid return 10000 mm/min 32.81 ft/min

Workpiece clamping
Clamping force, infinitely adjustable 2000 - 10000 N 1475.12 - 7375.62 ft/lbs

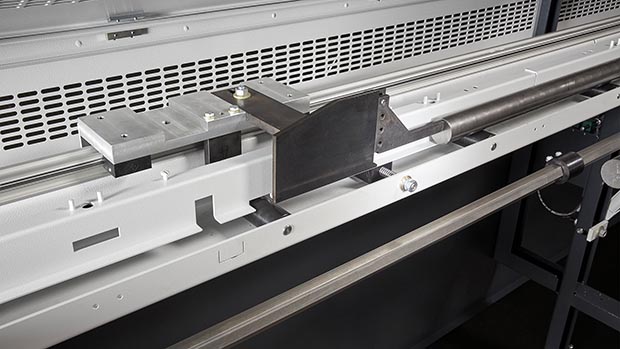

Bar feed
Bar pusher carriage feed motion 5 - 50 m/min 16.4 - 164.04 ft/min
Rapid return speed 150 m/min 492.13 ft/min
