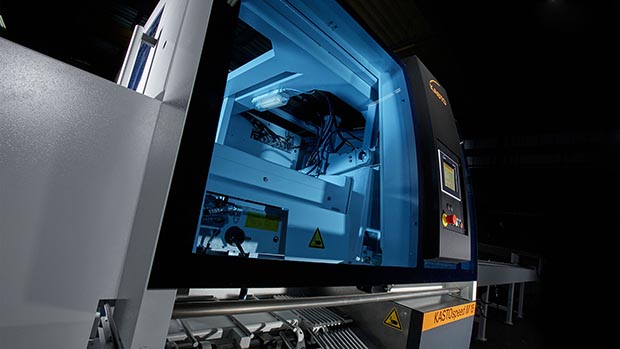

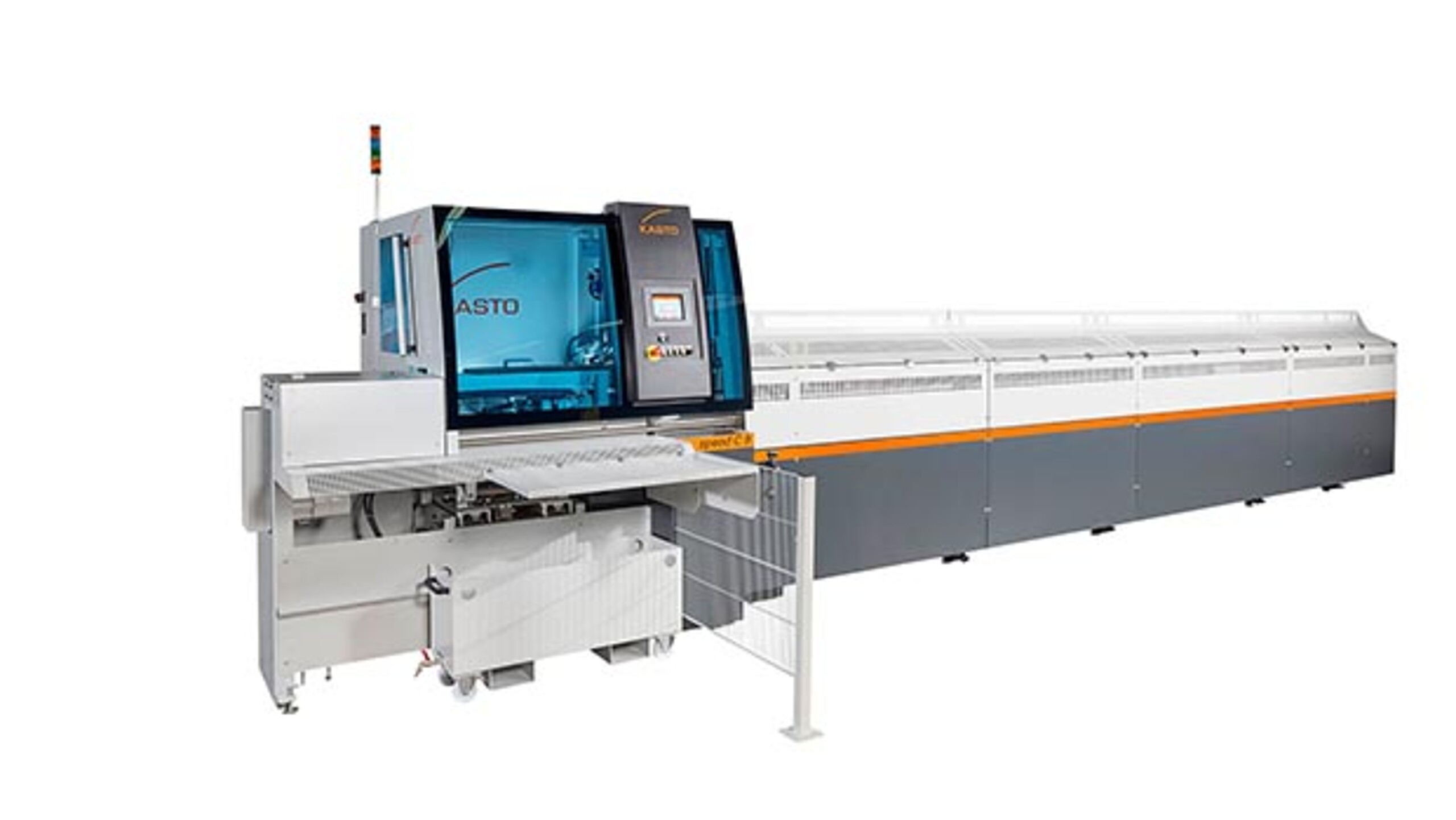

KASTOspeed M 15

Saw type:Circular saw
Cutting option: Straight cut
Automation:Automatic
Materials: Non-ferrous metals and plastics
Material width: 135 mm / 5.31 inch
Material height: 155 mm / 6.1 inch

CNC-Hochleistungs-Kreissägeautomat KASTOspeed M 15 zum schnellen und präzisen Sägen von Großserienabschnitten aus Aluminium und Aluminium-Legierungen mit hartmetallbestückten und HSS-Sägeblättern.

  • Schnelles und präzises Sägen in großen Stückzahlen
  • Sichere Werkstückzufuhr durch praxiserprobte Schrägmagazine
  • Automatische Vereinzelung und Laden auf Zufuhrrollenbahn
  • Frei wählbarer Stangen-Anschnitt, Reststückerkennung sowie automatische Anschnitt- und Reststücksortierung
  • SPS-Steuerung und Operator Panel

Your KASTO Contact

Sales

+49 7841 61-100

kasto(at)kasto.com

Technical Data

Thin-cut saw blade diameter carbide 360 mm/14.17 in
Saw blade clamping flange 3.4 mm 0.13 in
Saw blade bores 50/4 x 14/80 mm 1.97/0.16 x 0.55/3.15 in
Saw blade clamping flange 128 mm 5.04 in
Cutting range solid material, round 20 - 100 mm 0.79 - 3.94 in
Cutting range solid material, square 20 - 80 mm 0.79 - 3.15 in
Cutting range solid material, rectangular from 20 x 20 mm 0.79 x 0.79 in
Cutting range solid material, rectangular to 100 x 80 mm 3.94 x 3.15 in

Thin-cut saw blade diameter carbide 425 mm/16.73 in
Saw blade clamping flange 3.4 mm 0.13 in
Saw blade bores 50/4 x 14/80 mm 1.97/0.16 x 0.55/3.15 in
Saw blade clamping flange 128 mm 5.04 in
Cutting range solid material, round 40 - 140 mm 1.57 - 5.51 in
Cutting range solid material, square 40 - 120 mm 1.57 - 4.72 in
Cutting range solid material, rectangular from 40 x 20 mm 1.57 x 0.79 in
Cutting range solid material, rectangular to 140 x 100 mm 5.51 x 3.94 in

Thin-cut saw blade diameter carbide 460 mm/18.11 in
Saw blade clamping flange 3.4 mm 0.13 in
Saw blade bores 50/4 x 14/80 mm 1.97/0.16 x 0.55/3.15 in
Saw blade clamping flange 128 mm 5.04 in
Cutting range solid material, round 40 - 153 mm 1.57 - 6.02 in
Cutting range solid material, square 40 - 135 mm 1.57 - 5.31 in
Cutting range solid material, rectangular from 40 x 20 mm 1.57 x 0.79 in
Cutting range solid material, rectangular to 155 x 135 mm 6.1 x 5.31 in

Length 1700 mm 66.93 in
Width 2500 mm 98.43 in
Height 2050 mm 80.71 in
Material support height above floor 1100 mm 43.31 in
Weight 2800 kg 6172.94 lbm

Total connected load 40 kW 53.64 , / , hp
Drive power saw blade 40 kW 53.64 , / , hp
Cutting speed, infinitely adjustable, for aluminium (360 mm/14.17 in) 83 - 3500 m/min 272.31 - 11482.94 ft/min
Cutting speed, infinitely adjustable, for aluminium (425 mm/16.73 in) 900 - 3600 m/min 2952.76 - 11811.02 ft/min
Cutting speed, infinitely adjustable, for aluminium (460 mm/18.11 in) 1025 - 4100 m/min 3362.86 - 13451.44 ft/min
Saw blade feed, hydraulic, infinitely adjustable 300 - 7500 mm/min 0.98 - 295.28 ft/min
Rapid return 10000 mm/min 32.81 ft/min

Workpiece clamping
Infeed side, vertical and horizontal clamping force each 20000 N 14751.24 ft/lbs
Min. remnant length 70 mm 2.76 in
