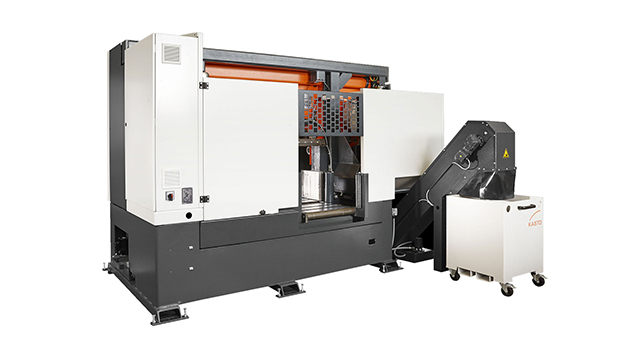

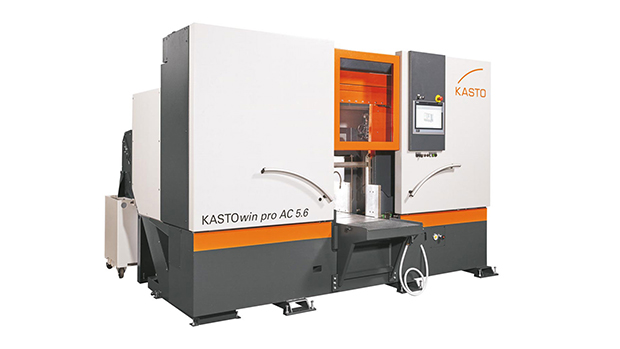

KASTOwin pro AC 5.6

Saw type:Bandsaw
Cutting option: Straight cut
Automation:Automatic
Materials: Structural steels, Stainless steel, Tool steel
Material width: 560 mm / 22.05 inch
Material height: 560 mm / 22.05 inch

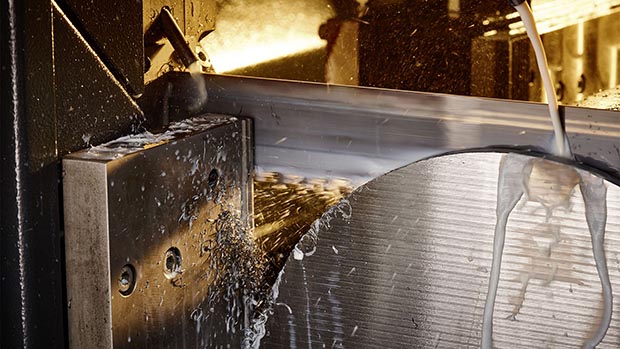

The high-performance band saw KASTOwin pro AC 5.6 is optimized for solid material, tubes and profiles. Users will appreciate its short cutting times, long tool life and intuitive operation. The fully automatic machine is optimized for bimetallic and carbide blades and can be applied in areas such as the steel trade, steel production, forging mills, machine manufacturing and the automotive industry. Besides helping to reduce tool costs, it significantly increases production speed and efficiency. Depending on the type of blade, cutting times can be reduced by 50 percent and more. The KASTOwin pro is designed for a wide range of applications and delivers top performance with both carbide and bimetallic saw blades. An important feature is its innovative feed system, which is controlled by means of two ball screw spindles, each with a servo drive for precise, infinitely variable control. The KASTOwin pro AC 5.6 also has a retraction unit on each side for lifting the blade from the surface when the saw head moves back. This makes for particularly efficient, exact sawing with minimal tool wear. In addition, this fully automatic saw comes with EasyControl, an advanced control unit. It is easy to use and reduces idle times in automatic operation for maximum cutting performance. All parameters can be optimized to match the type of blade being used.

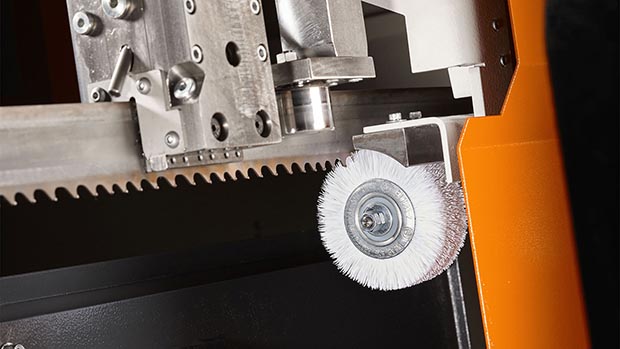

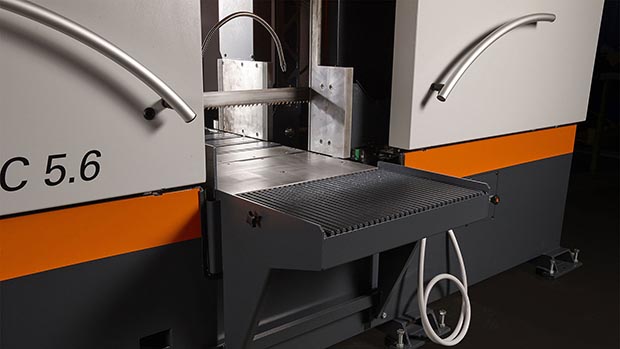

  • Optimal cleaning of saw blade by electrically driven, self-adjusting chip removal brush

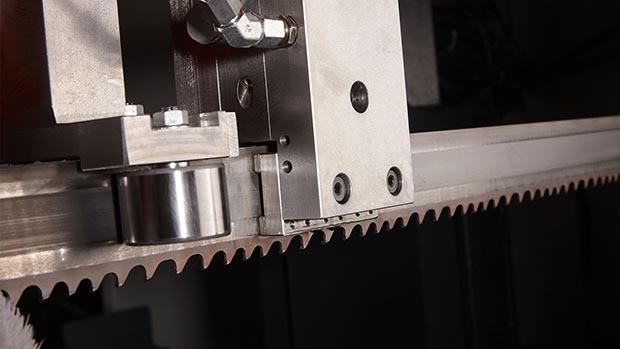

  • Automatic band guide arm adjustment to material width
  • Effective use of material down to a 35 mm short remnant
  • New layout: The drive unit and sensor are separate from the working area – ensuring reliable and trouble-free operation
  • Good accessibility despite of compliance with the current safety standard
  • Wear costs can be reduced up to 50% compared to the previous machine

Your KASTO Contact

Sales

+49 7841 61-100

kasto(at)kasto.com

Technical Data

Cutting range 90° round 560 mm 22.05 in
Cutting range 90° flat (W x H) 560 x 560 mm 22.05 x 22.05 in
Clamping range 0 - 560 mm 0 x 22.05 in
Smallest cut-off length 10 mm 0.39 in
Smallest dimension to be cut 25 x 25 mm 0.98 x 0.98 in
Shortest remnant length in automatic operation (possible only if the material has a perfect geometric surface) 35 mm 1.38 in
Shortest remnant length individual cut 10 mm 0.39 in

Length 1650 mm 64.96 in
Width 3300 mm 129.92 in
Height 2280 mm 89.76 in
Material support height 700 mm 27.56 in
Weight 4300 kg 9479.88 lbm

Saw motor, frequency controlled 11 kW 14.75 hp
Total power 15.5 kW 20.79 hp
Material feed length, individual cut 500 mm 19.69 in
Multiple feed 9999 mm 393.66 in
Machine roller conveyor, length 1100 mm 43.31 in
Ball-bearing massive transport rollers 7 pieces 7 pieces
Dimensions of rollers 70 mm 2.76 in
Distance between rollers 203 mm 7.99 in
Cutting speed, infinitely adjustable 12 - 150 m/min 39.37 - 492.13 ft/min
Dimensions of saw blade 7067 x 54 x 1.6 mm 278.23 x 2.13 x 0.06 in
Cutting feed electrically adjustable via 2 ball bearing spindles
Material feed ball bearing spindle
Material clamping hydraulic
Saw blade cleaning self adjusting chip brush, driven by electric motor
