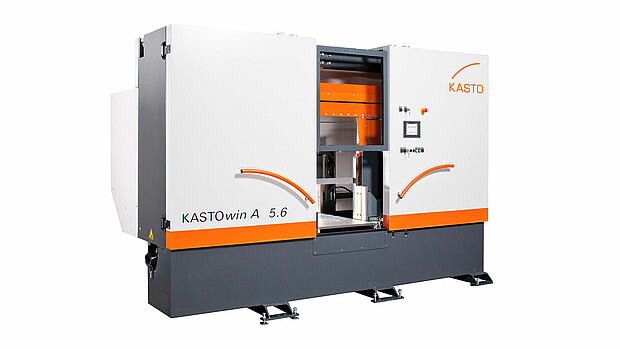

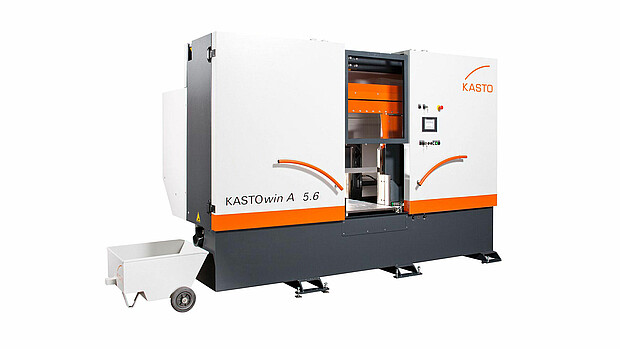

KASTOwin A 5.6

Saw type:Bandsaw
Cutting option: Straight cut
Automation:Automatic
Materials: Structural steels, Stainless steel, Tool steel
Material width: 560 mm / 22.05 inch
Material height: 560 mm / 22.05 inch

The fully-automated bandsaws from the KASTOwin range have been designed for mass production sawing of solid material, tube and profile. Designed in Germany and manufactured in state-of-the-art, flow line production lines at our assembly plants in Achern (in the northern Black Forest) and Schalkau (Thuringia), KASTOwin creates the ideal conditions for optimum efficiency.


  • Customised to the specific application using a modular system design

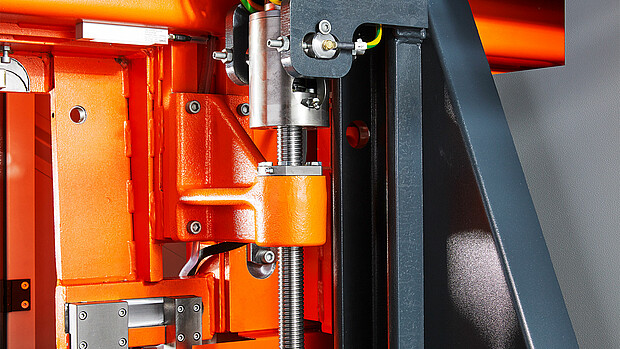

  • Quick motion using servo drive and ball screw spindle for the material feed and the linear guided saw frame
  • Automatic band guide arm adjustment
  • Quick and easy programming via colour touch screen
  • AdvancedControl to ensure high bandsaw blade lifetimes
  • Incremental feed for cutting batches of short pieces

Your KASTO Contact

Sales

+49 7841 61-100

kasto(at)kasto.com

Technical Data

Cutting range 90° round 560 mm 22.05 in
Cutting range 90° flat (W x H) 560 x 560 mm 22.05 x 22.05 in
Clamping range 0 - 560 mm 0 x 22.05 in
Smallest cut-off length 10 mm 0.39 in
Smallest dimension to be cut 25 x 25 mm 0.98 x 0.98 in
Shortest remnant length in automatic operation (possible only if the material has a perfect geometric surface) 35 mm 1.38 in
Shortest remnant length individual cut 10 mm 0.39 in

Length 1650 mm 64.96 in
Width 3300 mm 129.92 in
Height 2280 mm 89.76 in
Material support height 700 mm 27.56 in
Weight 3800 kg 8377.57 lbm

Saw motor, frequency controlled 5.5 kW 7.38 hp
Total power 8 kW 10.73 hp
Material feed length, individual cut 500 mm 19.69 in
Multiple feed 9999 mm 393.66 in
Machine roller conveyor, length 1100 mm 43.31 in
Ball-bearing massive transport rollers 8 pieces 8 pieces
Dimensions of rollers 70 mm 2.76 in
Distance between rollers 135 mm 5.31 in
Cutting speed, infinitely adjustable 12 - 150 m/min 39.37 - 492.13 ft/min
Dimensions of saw blade 7067 x 54 x 1.6 mm 278.23 x 2.13 x 0.06 in
Cutting feed electrically adjustable via ball bearing spindle
Material feed ball bearing spindle

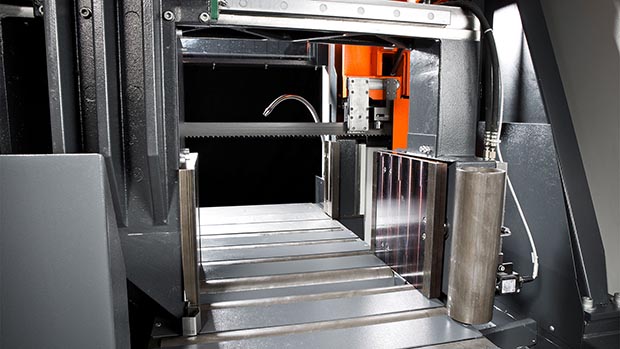

Material clamping hydraulic
Saw blade cleaning self adjusting chip brush, driven by electric motor
