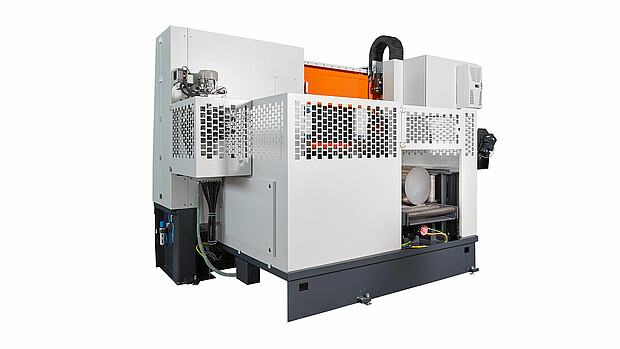

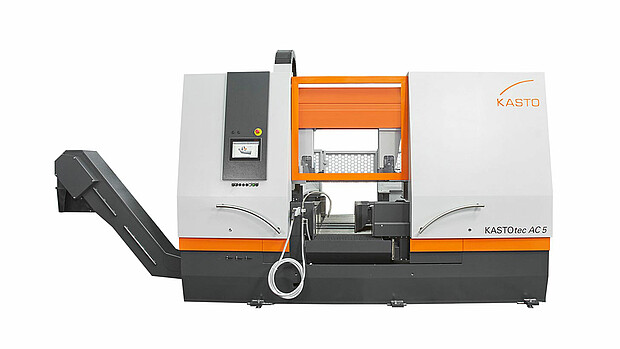

KASTOtec AC 5

Saw type:Bandsaw
Cutting option: Straight cut
Automation:Automatic
Materials: Structural steels, Stainless steel, Tool steel, Steels for special application
Material width: 630 mm / 24.8 inch
Material height: 530 mm / 20.87 inch

It‘s an open secret that the economic use of automatic sawing machines consists of two things: High metal-cutting performance on the one hand and low non-productive times on the other. The KASTOtec AC was developed for the optimal use of the bi-metal, bi-metal plus, carbide and carbide plus tool technologies offered on the market. In this way, optimal productivity is achieved with a higher cutting performance and a more economic use of carbide bands. The control system used in the machine enables the automatic assignment and lasting storage of the cutting technology adapted to the respective material qualities and the saw band used (bi-metal or carbide). This doesn‘t just lower tool costs, it is also results in significantly shorter cutting times - depending on the saw band, savings of 50 per cent and more are possible. The simple operation and the well-designed material handling reduce downtimes and thus create the best conditions for optimum economic efficiency.


  • The machine offers all well-known features of the KPC package (KASTO performance cutting)
  • Saw blade guide using hydraulically preloaded carbide sliding guides
  • Electronic monitoring of the hydraulic saw band tension
  • Continuously adjustable cutting speed, centrally adjustable
  • Optimal saw band service life thanks to the patented belt-free stroke when lifting the saw frame
  • 0 - degree start point for fully automatic positioning of the first cut
  • Controlled saw feed movement using two ball screw spindles
  • Optimal cleaning of the saw band by electric, motor-driven, self-adjusting chip-removal brushes
  • Fast movement from servo drives and ball screw spindles for material feed and linear-guided saw frame
  • Band guide arm automatically adjusts to the width of the material

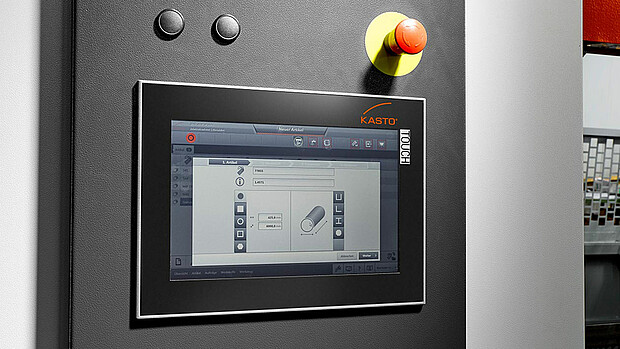

  • The saw machine control system ProControl is easy to operate and takes care of the crucial settings
  • Easy input of sawing orders with section lengths, quantities and material selection
  • Effective use of material up to a 35 mm short offcut
  • New layout: Drive unit and sensors are separated from the actual work area - ensuring reliable and trouble-free operation
  • Material clamping jacks with free-lift device ensure reliable automatic operation
  • High cutting performance with impressive repeat accuracy
  • Good accessibility despite compliance with current safety standards
  • 50 % savings on wear and tear costs compared with predecessor machines

Your KASTO Contact

Sales

+49 7841 61-100

kasto(at)kasto.com

Technical Data

Cutting range round 530 mm 20.87 in
Cutting range square (W x H) 530 x 530 mm 20.87 x 20.87 in
Cutting range flat (W x H) 530 x 630 mm 20.87 x 24.8 in
Clamping range 0 - 630 mm 0 - 24.8 in
Smallest size to be cut 10 x 10 mm 0.39 x 0.39 in
Shortest length of cut-off piece 6 mm 0.24 in
Shortest remnant length in automatic operation, possible only if the material has a perfect geometric surface 35 mm 1.38 in
Shortest remnant length individual cut 10 mm 0.39 in

Length 2235 mm 87.99 in
Width incl. chip conveyor 5335 mm 210.04 in
Height 2830 mm 111.42 in
Material support height 700 mm 27.56 in
Total weight 6550 kg 14440.28 lbm

Total connected load 25 kW 33.53 hp
Power of saw motor 15 kW 20.12 hp
Power at running wheel 14 kW 18.77 hp
Cutting speed infinitely variable with 50 or 60 Hz 30 - 300 m/min 98.43 - 984.25 ft/min
Optional cutting speed 8 - 80 m/min 26.25 - 262.47 ft/min
Saw feed speed 0.5 - 300 m/min 1.64 - 984.25 ft/min
Automatic material feed length, single stroke 600 mm 23.62 in
Automatic material feed length, multiple stroke 9999 mm 393.66 in
Dimensions of saw blade 7675 x 54 x 1.6 mm 302.17 x 2.13 x 0.06 in
