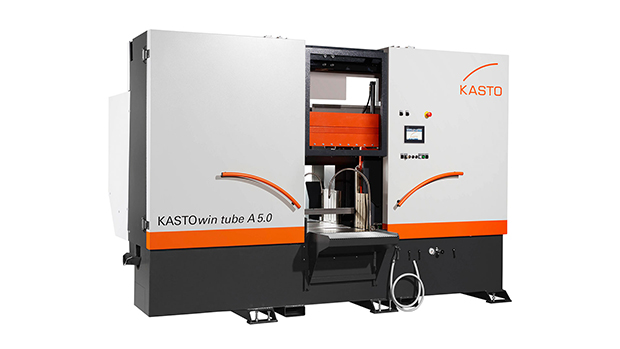

KASTOwin tube A 5.0

Saw type:Bandsaw
Cutting option: Straight cut
Materials: Structural steels, Stainless steel, Tool steel
Material width: 560 mm / 22.05 inch
Material height: 520 mm / 20.47 inch

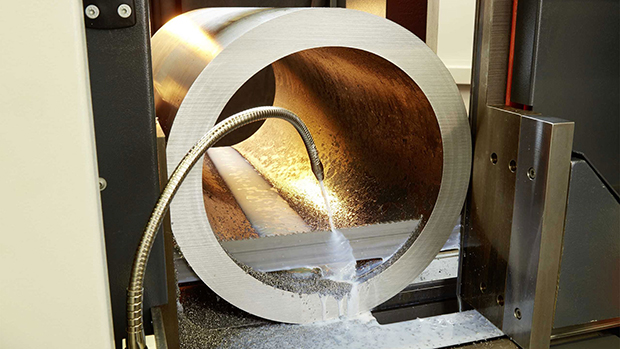

This automatic high-performance bandsawing machine has been especially designed for machining tubular material. With a saw feed rotated through 180 degrees, this fully automatic machine works in a particularly efficient way to reduce wear on the cutting tools.

An infinitely variable electro mechanic saw feed with servomotor and ball bearing spindle, working from the bottom to the top, offers the best conditions for an efficient, sensitive and tool-saving cutting operation.

The standard precise linear guides (re-circulating ball units with grease lubricated guide carriage) guarantee maximum life.

The standard AdvancedControl offers the optimum operation of the machine.

Easy and clearly arranged job entry via job wizard. The precise drive via ball bearing spindle in material feed guarantees an accurate material length positioning.

  • Machine base - Heavy-duty, distortion-free welded construction
  • Machine Enclosure according to the latest CE Criteria
  • Saw Unit (Saw Frame) - extremely quiet running without vibration
  • Linear guides, each one with two guide carriages on one guide rail

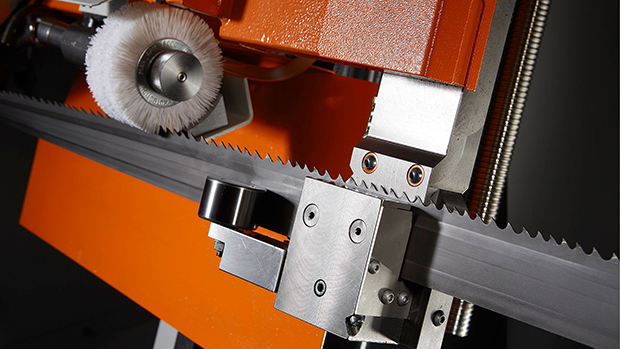

  • Saw Blade Guide- Lateral guiding by hydraulically pretensioned carbide slideways
  • Material clearance stroke system

Your KASTO Contact


+49 7841 61-100


Technical Data

Cutting range 90° round 520 mm 20.47 in
Cutting range 90° flat (W x H) 560 x 520 mm 22.05 x 20.47 in
Clamping range 0 - 560 mm 0 x 22.05 in
Smallest cut-off length 10 mm 0.39 in
Smallest dimension to be cut 25 x 25 mm 0.98 x 0.98 in
Shortest remnant length in automatic operation (possible only if the material has a perfect geometric surface) 50 mm 1.97 in
Shortest remnant length individual cut 25 mm 0.98 in
Remnant lengths may vary when cutting in layers and bundles

Length 1705 mm 67.13 in
Width 3339 mm 131.46 in
Height 2277 mm 89.65 in
Material support height 700 mm 27.56 in
Weight 3800 kg 8377.57 lbm

Saw motor, frequency controlled 5.5 kW 7.38 hp
Total power 8 kW 10.73 hp
Material feed length, individual cut 500 mm 19.69 in
Multiple feed 9999 mm 393.66 in
Machine roller conveyor, length 1100 mm 43.31 in
Ball-bearing massive transport rollers 8 pieces 8 pieces
Dimensions of rollers 70 mm 2.76 in
Distance between rollers 135 mm 5.31 in
Cutting speed, infinitely adjustable 12-150 m/min 39.37/492.13 ft/min
Dimensions of saw blade 7067 x 54 x 1.6 mm 278.23 x 2.13 x 0.06 in
Cutting feed electrically adjustable via 2 ball bearing spindles
Material feed ball bearing spindle
Material clamping hydraulic

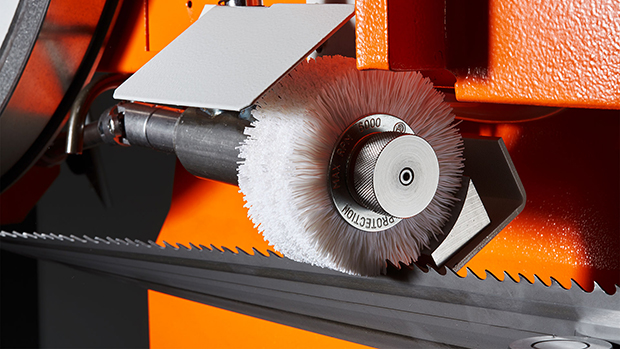

Saw blade cleaning self adjusting chip brush, driven by electric motor
