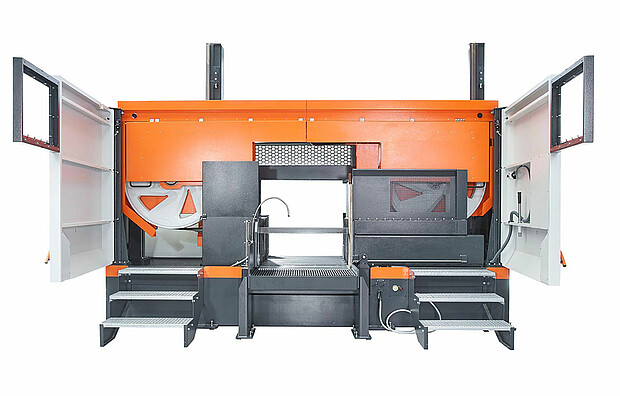

KASTOwin A 10.6
| Saw type: | Bandsaw |
|---|---|
| Cutting option: | Straight cut |
| Automation: | Automatic |
| Materials: | Structural steels, Stainless steel, Tool steel |
| Material width: | 1060 mm / 41.73 inch |
| Material height: | 1060 mm / 41.73 inch |
The fully-automated bandsaws from the KASTOwin range have been designed for mass production sawing of solid material, tube and profile. Designed in Germany and manufactured in state-of-the-art, flow line production lines at our assembly plants in Achern (in the northern Black Forest) and Schalkau (Thuringia), KASTOwin creates the ideal conditions for optimum efficiency.
- Customised to the specific application using a modular system design
- Quick motion using servo drive and ball screw spindle for the material feed and the linear guided saw frame
- Automatic band guide arm adjustment
- Quick and easy programming via colour touch screen
- Intelligent control to ensure high bandsaw blade lifetimes
- Incremental feed for cutting batches of short pieces
Downloads
Technical Data
| Cutting range 90° round | 1060 mm | 41.73 in |
| Cutting range 90° flat (W x H) | 1060 x 1060 mm | 41.73 x 41.73 in |
| Clamping range | 0 - 1060 mm | 0 x 41.73 in |
| Smallest cut-off length | 10 mm | 0.39 in |
| Smallest dimension to be cut | 50 x 50 mm | 1.97 x 1.97 in |
| Shortest remnant length in automatic operation (possible only if the material has a perfect geometric surface) | 35 mm | 1.38 in |
| Shortest remnant length individual cut | 10 mm | 0.39 in |
| Length | 2870 mm | 112,99 in |
| Width | 4933 mm | 194.21 in |
| Height | 3555 mm | 139.96 in |
| Material support height | 700 mm | 27.56 in |
| Weight | 12600 kg | 27778.25 lbm |
| Saw motor, frequency controlled | 7.5 kW | 10.06 hp |
| Total power | 15 kW | 20.11 hp |
| Material feed length, individual cut | 500 mm | 19.69 in |
| Multiple feed | 9999 mm | 393.66 in |

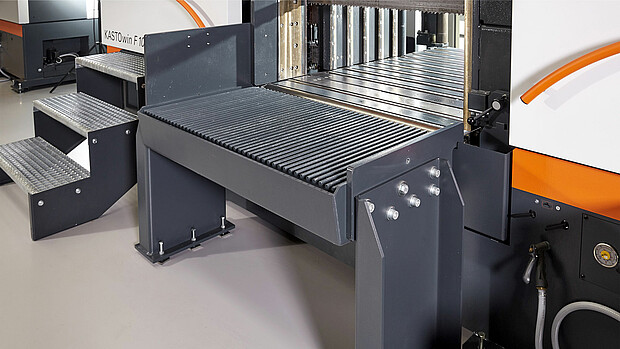

| Machine roller conveyor, length | 1100 mm | 43.31 in |
| Ball-bearing massive transport rollers | 8 pieces | 8 pieces |
| Dimensions of rollers | 90 mm | 3.54 in |
| Distance between rollers | 135 mm | 5.31 in |
| Cutting speed, infinitely adjustable | 12 - 150 m/min | 39.37 - 492.13 ft/min |
| Dimensions of saw blade | 10422 x 80 x 1.6 mm | 410.31 x 3.15 x 0.06 in |
| Cutting feed | electrically adjustable via 2 ball bearing spindles | |
| Material feed | ball bearing spindle | |

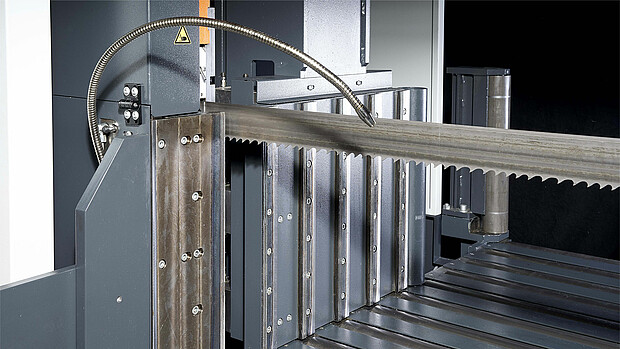

| Material clamping | hydraulic | |

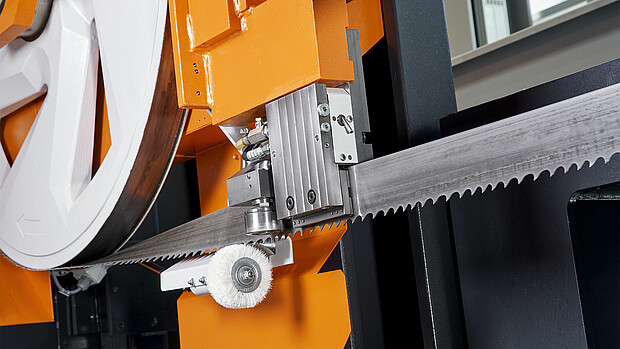

| Saw blade cleaning | self adjusting chip brush, driven by electric motor |
