KASTOhba U

Saw type:Bandsaw
Cutting option: Straight cut
Automation:Semi automatic
Materials: Structural steels, Stainless steel, Tool steel, Steels for special application
Material width: 1720 mm / 67.72 inch
Material height: 1320 mm / 51.97 inch

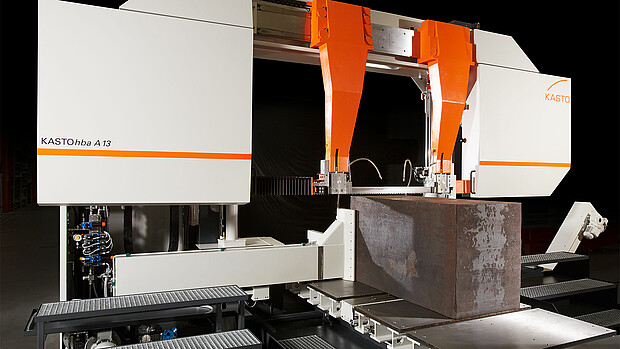

Fully hydraulic and automatic high-performance bandsawing machine of robust construction, with saw blade moving parallel in horizontal direction, for cutting of profiles, tubes and solid material of all qualities and of material which is difficult to cut (e.g. titanium, Hastelloy, Inconel).

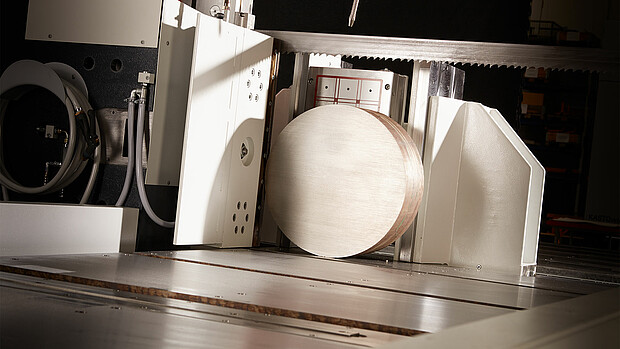

  • Hydraulic horizontal clamping vise with side shift cylinder of the fixed clamping jaw
  • Saw head and band guides adjust automatically via light barriers to material height and material width.
  • Hydraulically preloaded carbide slide guides of the saw blade
  • Hydraulic and electronic control of saw blade tensioning
  • Protective fence on infeed side



The KASTOhba U is available in the following variants

  • KASTOhba U 10 x 12
  • KASTOhba U 13
  • KASTOhba U 13 x 17



Technical data and an overview of the different models can be found in our brochure.
