KASTOhba A

Saw type:Bandsaw
Cutting option: Straight cut
Automation:Automatic
Materials: Structural steels, Stainless steel, Tool steel, Steels for special application
Material width: 1720 mm / 67.72 inch
Material height: 1320 mm / 51.97 inch

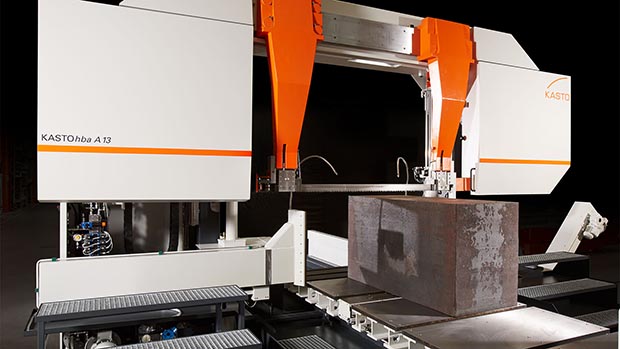

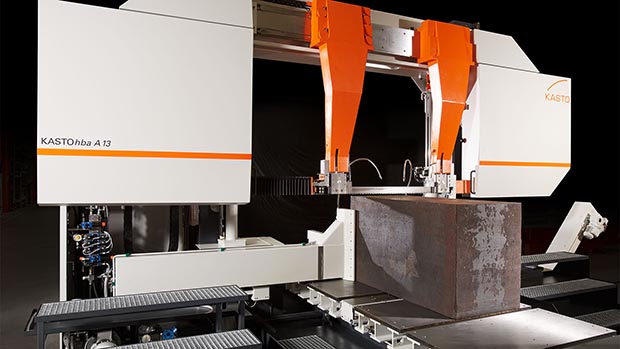

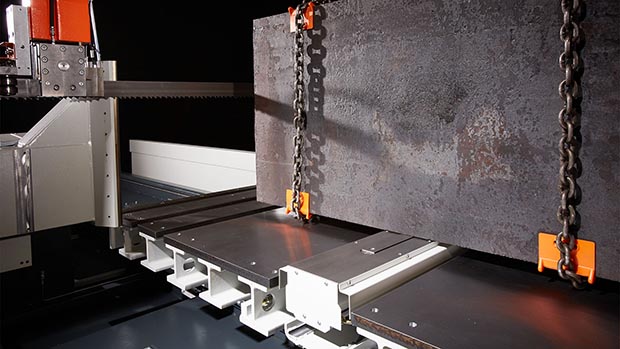

Fully hydraulic and automatic high-performance bandsawing machine of robust construction, with saw blade moving parallel in horizontal direction, for cutting of profiles, tubes and solid material of all qualities and of material which is difficult to cut (e.g. titanium, Hastelloy, Inconel).

  • exceptionally solid construction, high rigidity
  • extremely good vibration dampening
  • Short cutting times and hight cutting performance

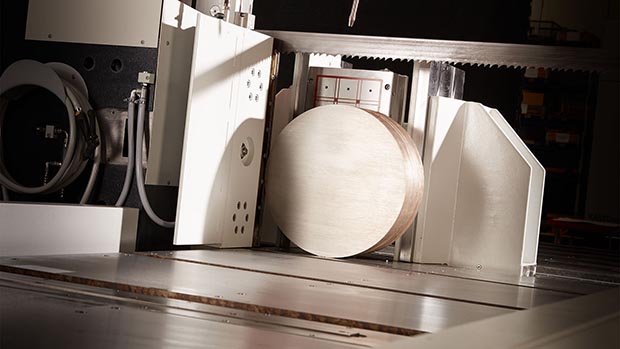

  • Hydraulic horizontal clamping vise with side shift cylinder of the fixed clamping jaw
  • Saw head and band guides adjustment automatically via light barriers to material height and material width
  • Feed control with KASTO Universal Hydraulics UH provides long blade life and accurate cuts due to precise feed control – even with extremely slow feeds
  • Hydraulically pretensioned carbide slideways of saw blade
  • Hydraulic and electrical control of saw blade tensioning
  • Attached hydraulic system is easily accessible
  • Protective fence on infeed side



The KASTOhba A is available in the following variants

  • KASTOhba A 10 x 12
  • KASTOhba A 13
  • KASTOhba A 13 x 17



Technical data and an overview of the different models can be found in our brochure.
