KASTObloc U 5
| Saw type: | Bandsaw |
|---|---|
| Cutting option: | Vertical cut |
| Automation: | Semi automatic |
| Materials: | Structural steels, Stainless steel, Tool steel, Blocks and plates |
| Material width: | 660 mm / 25.98 inch |
| Material height: | 580 mm / 22.83 inch |
KASTO block and plate sawing machines
Is it your job to cut different dimensions from different plates and blocks from your existing material using the longitudinal cutting method? Does the majority of your cutting tasks consist of cutting light to medium blocks or plates?
Then you will find the right sawing machine for your cutting task here. By utilizing the longitudinal cutting method, KASTO block and plate sawing machines make it possible to configure different cross-section dimensions from billets and plates, rectangular or flat materials.

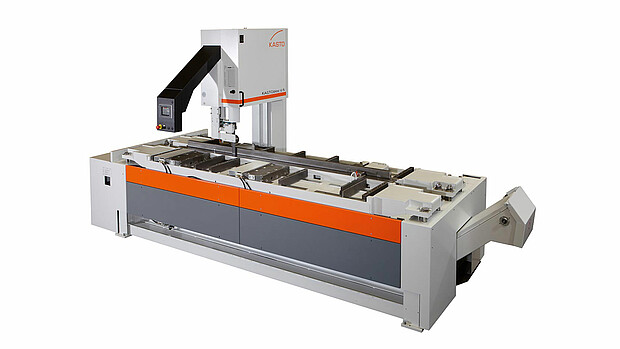

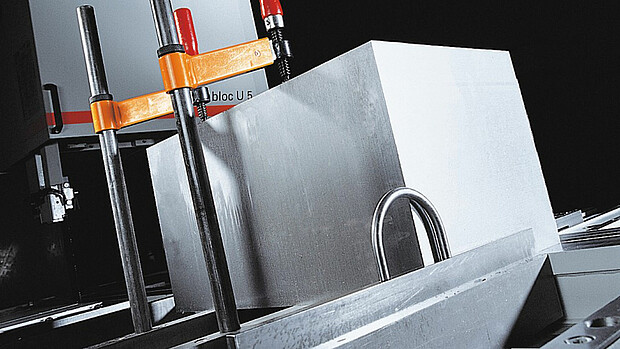

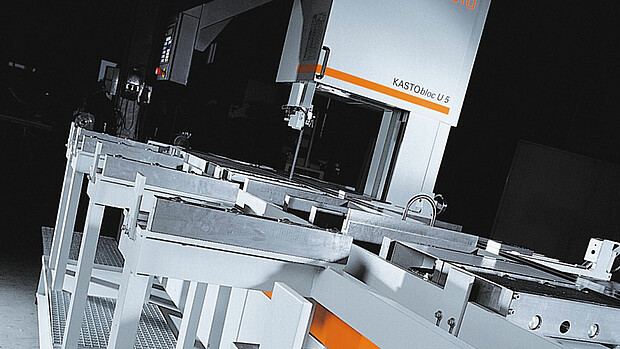

KASTObloc U 5:
- Ideal for cutting remnant pieces
- The footprint is reduced by approx. 50% since the machine moves instead of the workpiece.
- The traversing and pivoting operating panel guarantees maximum overview and safety.
- Highly dynamic and excellent material handling
- The machine is installed on the floor and can be repositioned if needed.
- Integrated powered chip removal brush, coolant system and chip conveyor (discharge level 745 mm)
- Cutting length from 2,100 up to 4,100 mm in 1,000 mm increments
- Cutting depth preselection
Technical Data
| Available with the following cutting lengths | ||
| Cutting height without BandControl | 580 mm | 22.83 in |
| Cutting height with BandControl | 540 mm | 21.26 in |
| Cutting depth (without measuring stops) | 660 mm | 25.98 in |
| Available with the following cutting lengths | ||
| Max. cutting length | 2100 mm | 82.68 in |
| Max. cutting length | 3100 mm | 122.05 in |
| Max. cutting length | 4100 mm | 161.42 in |
| General | ||
| Width incl. grating | 2610 mm | 102.76 in |
| Height without laser | 3200 mm | 125.98 in |
| Height with laser | 3200 mm | 125.98 in |
| Height of table | 1200 mm | 47.24 in |
| With cutting length 2100 mm | ||
| Supporting surface of front table (L x W) | 2100 x 660 mm | 82.68 x 25.98 in |
| Supporting surface of back table (L x W) | 2100 x 660 mm | 82.68 x 25.98 in |
| Max. table load outer table | 3500 kg | 9700.34 lbm |
| Max. table load inner table | 3500 kg | 9700.34 lbm |
| Length incl. chip conveyor | 4560 mm | 179.53 in |
| Total weight | 7500 kg | 9700.34 lbm |
| With cutting length 3100 mm | ||
| Supporting surface of front table (L x W) | 3100 x 660 mm | 122.05 x 25.98 in |
| Supporting surface of back table (L x W) | 3100 x 660 mm | 122.05 x 25.98 in |
| Max. table load outer table | 6000 kg | 9700.34 lbm |
| Max. table load inner table | 5000 kg | 9700.34 lbm |
| Length incl. chip conveyor | 5560 mm | 218.9 in |
| Total weight | 8000 kg | 9700.34 lbm |
| With cutting length 4100 mm | ||
| Supporting surface of front table (L x W) | 4100 x 660 mm | 161.42 x 25.98 in |
| Supporting surface of back table (L x W) | 4100 x 660 mm | 161.42 x 25.98 in |
| Max. table load outer table | 6000 kg | 9700.34 lbm |
| Max. table load inner table | 4000 kg | 9700.34 lbm |
| Length incl. chip conveyor | 6560 mm | 258.27 in |
| Total weight | 8500 kg | 9700.34 lbm |
| Power of saw motor | 4 kW | 5.36 hp |
| Total connected load | 6 kW | 8.05 hp |
| Cutting speed, infinitely variable | 12 – 120 m/min | 39.37 - 393.70 ft/min |
| Saw feed, infinitely variable | 1 - 250 mm/min | 0.04 - 9.84 in/min |
| Rapid motion | 8 m/min | 26.25 ft/min |
| Dimensions of saw blade | 5450 x 41 x 1.3 mm | 214.57 x 1.61 x 0.05 in |
| or | 5450 x 54 x 1.3 mm | 214.57 x 2.13 x 0.05 in |
