KASTOvertical

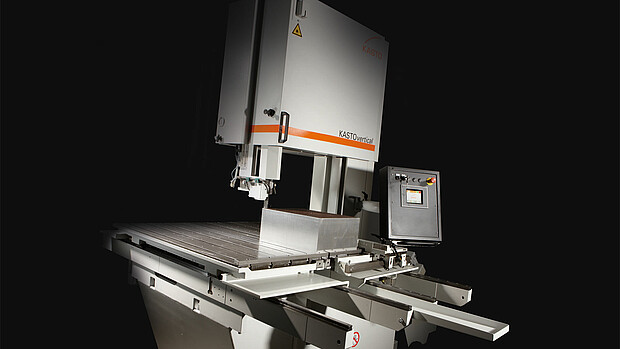

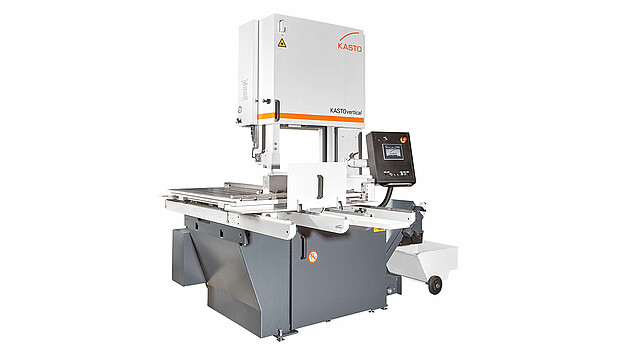

KASTOvertical vertical bandsaw for precise long cuts in billets, plates and solid materials
KASTOvertical vertical bandsaw for precise long cuts in billets, plates and solid materials
KASTOvertical with hydraulically adjustable blade arm and automatic saw band tensioning
KASTOvertical – scie verticale performante pour des coupes précises et économiques
KASTOvertical – universal vertical bandsaw for structural steels, stainless steels, tool steels and special alloys
KASTOvertical vertical bandsaw for precise long cuts in billets, plates and solid materials
KASTOvertical vertical bandsaw for precise long cuts in billets, plates and solid materials
KASTOvertical with hydraulically adjustable blade arm and automatic saw band tensioning
KASTOvertical – scie verticale performante pour des coupes précises et économiques
KASTOvertical – universal vertical bandsaw for structural steels, stainless steels, tool steels and special alloys
Saw type:Bandsaw
Cutting option: Vertical cut
Automation:Semi automatic
Materials: Structural steels, Stainless steel, Tool steel, Steels for special application
Material width: 680 mm / 26.77 inch
Material height: 600 mm / 23.62 inch

By the long cut working method, the vertical KASTO bandsawing machine allows to cut square or flat materials with different sizes of cross section from rolled blocks or rolled plates.

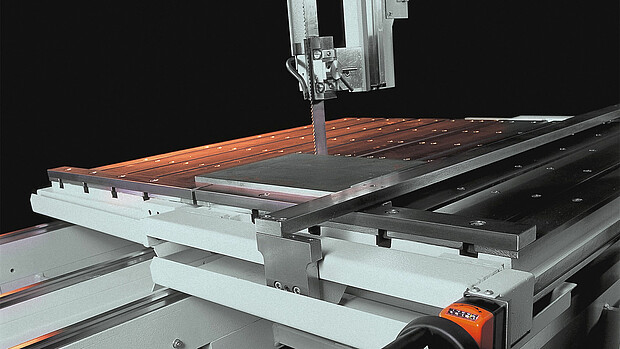

  • Movable material support table ensures fast and safe material handling
  • Sawband guide via pretensioned carbide glide guides, with quick release for fast blade change
  • Cutting speed and cutting feed infinitely adjustable
  • Hydraulic, height-adjustable band arm guide
  • Hydraulic saw blade clamping, electrically monitored, automatic shut-off in case of breakage

Downloads

Your KASTO Contact

Sales

+49 7841 61-100

kasto(at)kasto.com

Technical Data

Cutting height without BandControl 600 mm 23.62 in
Cutting height with BandControl 560 mm 22.05 in
Max. cutting length 1260 mm 49.61 in
Cutting depth 680 mm 26.77 in

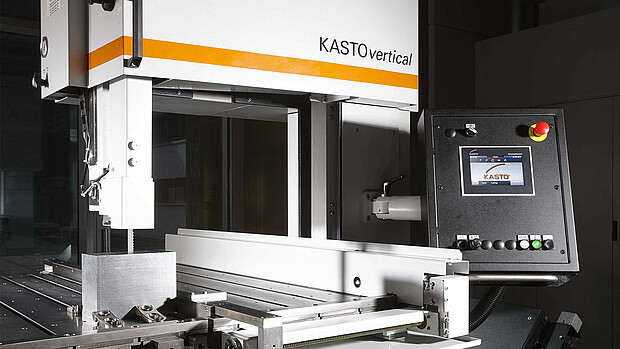

Cutting depth with measuring stop (option) 605 mm 23.82 in

Supporting surface of front table - Length 1260 mm 49.61 in
Supporting surface of front table - Width 640 mm 25.2 in
Supporting surface of back table - Length 1260 mm 49.61 in
Supporting surface of backfront table - Width 640 mm 25.2 in
Max. table load 2000 kg 4409.25 lbm
Length 3110 mm 122.44 in
Width incl. chip tray 1950 mm 76.77 in
Width incl. chip conveyor (option) 2520 mm 99.21 in
Height 3050 mm 120.08 in
Height of table support 1150 mm 45.28 in
Total weight 3400 kg 7495.72 lbm

Power of saw motor 4 kW 5.36 hp
Total connected load 6 kW 8.05 hp
Cutting speed, infinitely variable 12 - 120 m/min 39.37 - 393.7 ft/min
Saw feed speed 1 - 250 mm/min 0.04 - 9.84 in/min
Rapid motion 2200 mm/min 86.61 in/min
Dimensions of saw blade 5450 x 41 x 1.3 mm 214.57 x 1.61 x 0.05 in
or 5450 x 54 x 1.3 mm 214.57 x 2.13 x 0.05 in

Related Products

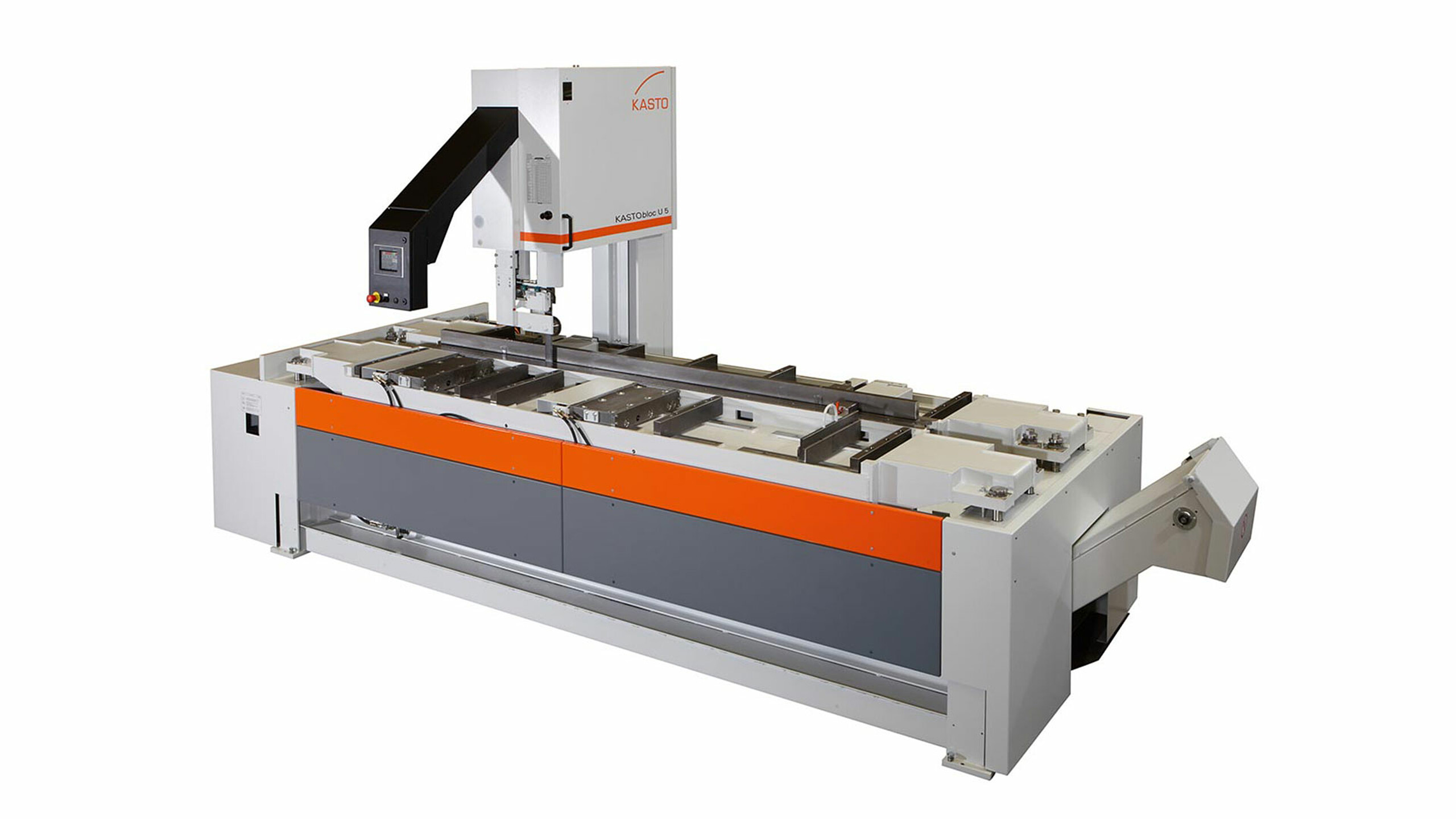

Vertical bandsaw for structural steels, stainless steels and tool steels with 660 mm width and 580 mm height
