Automated material flow with a sawing centre and honeycomb storage system for rapid cutting
A wide range of products, small batch sizes and short lead times characterise Hagelauer Dewald’s business. At the same time, space at the Pleidelsheim site was limited. To support further growth, the steel trader therefore opted for an integrated solution comprising automated storage, sawing and handling technology from KASTO. Today, the high-bay warehouse, sawing centre and automated order preparation work in tandem – from raw material right through to sorted cut-to-size pieces.
Hagelauer Dewald GmbH
Hagelauer Dewald operates in the steel trade and is part of the Lotter Group. From its Pleidelsheim site, the company supplies, amongst others, mechanical engineering firms and other steel processors. A significant part of its business consists of a wide variety of items and small quantities.
Challenge: Growth in a limited space
Following the merger of Hagelauer and Dewald, the warehouse and production halls at the Pleidelsheim site reached their limits. At the same time, the order-driven business demanded a high degree of flexibility and speed: Around 100,000 SKUs and 2.5 million sawn-to-size pieces per year have to be handled, with more than 60 per cent of the SKUs leaving the hall on just a single pallet or in a single plastic crate. The task was therefore clear: to make consistent use of the existing space, create additional storage capacity and process many small orders quickly and largely automatically.
Solution: Networked, automated storage, sawing and handling processes
KASTO was involved right from the initial planning discussions for the new building. At the heart of the solution is an automatic honeycomb storage system of the UNICOMPACT 3.5 type, with a total storage capacity of almost 14,000 tonnes. It supplies material to the adjacent, fully automated KASTOcenter varioplus 2 sawing centre unmanned, via special sawing cassettes and mobile longitudinal carriages. The overall solution thus combines raw material storage, pre-processing and the structured provision of cut-to-size parts in a single automated process.
Highlight: Automated material flow right down to the pallet
In the sawing centre, a wide variety of jobs can be processed automatically without any changeover or dwell times. After sawing, the KASTOsort robot, amongst other things, collects the sawn sections, feeds them to a deburring unit if required, and then sorts them into suitable load carriers. Cut pieces are automatically assigned a barcode; the production documents are also already placed on the pallets. For Hagelauer Dewald, this means, above all, rapid availability: according to Managing Director Jörg Bayer, small quantities ordered today can be delivered as early as the next day.
Delivery with system
Numerous items, small batch sizes – this demands flexible and speedy handling. To offer customers these advantages, the steel distributor Hagelauer Dewald relies on an automated high-bay storage system from KASTO. Equipped with the KASTOcenter varioplus 2 sawing centre, the company can handle processing stages for their customers, opening up the potential for growth in response to the growing trend.
Stepping into the offices of Hagelauer Dewald GmbH in Pleidelsheim, you would never imagine what the buildings next to and behind it hold. Ever since the merger of Hagelauer and Dewald under the umbrella of the Lotter Group, their warehouses and production halls have been bulging at the seams. Due to the overcrowding, the management board decided to construct a new building to make use of every available metre, both horizontally and vertically, within the limited space. Now a 20-metre-high building towers between the administration facilities and the new production halls, accommodating a high-bay warehouse and sawing centre. "Although demolition and the construction of the new building took place basically amid ongoing operations, we could maintain production throughout the entire building phase," explains Jörg Bayer proudly. As one of two managing directors at Hagelauer Dewald, he helped shape the "Growth" project and offered assistance throughout the project.
The newly constructed halls have an impressive appearance due to their extensive extension in all directions, landscaping, and the installation of photovoltaic cells on the roofs. Underneath the concrete foundation for the high-bay storage system lies a sustainable concept: in addition to the ground slab, posts were driven into the ground. Not only do these posts carry heavy loads, but they also harness geothermal energy from the ground. "We use this energy for heating and cooling our office building," Jörg Bayer explains while adding: "We are committed to sustainability."
High-bay storage system as the core component
A vital component for ensuring the growth of the steel distributor is the "furnishings and equipment" in the halls: To achieve this, Hagelauer Dewald turned to KASTO Maschinenbau GmbH und Co KG, a specialist in storage and sawing technology. The family-owned company located in Achern had already been involved in the preliminary planning stages in 2019. It provided the structural calculations for the roof and wall substructure and the structural calculation of the floor loads for the construction of the foundation onsite. "KASTO knows exactly what and how to build to establish the required stability for the massive weights," Jörg Bayer explains. In the 1990s, KASTO demonstrated their expertise by providing the first machines for Hagelauer. Later, a storage system and several KASTOvariospeed C 15 circular saws were added to the mix, which still perform well today.

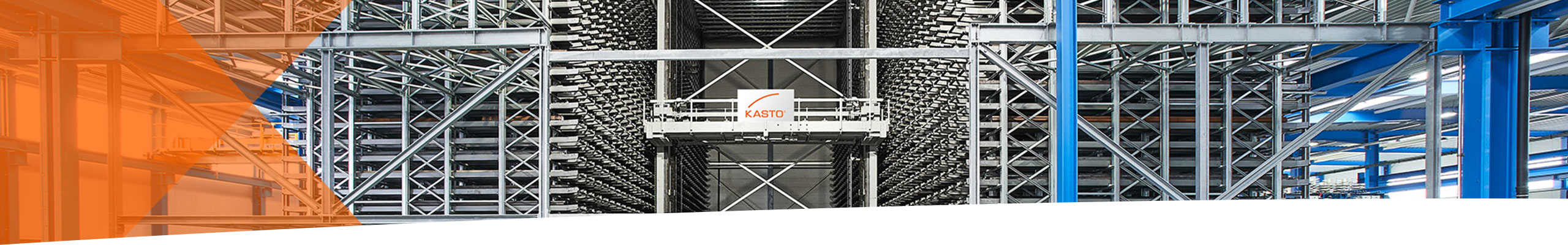

The UNICOMPACT 3.5 honeycomb storage system is the core component of the new building. It has a total storage capacity of nearly 14,000 tonnes; after its completion, it can accommodate 4,000 cassettes, each with a storage capacity of 3.5 tonnes. "We use this high-bay storage system to stock material and supply the surrounding stations," explains Jörg Bayer. There, employees pick the orders and handle the processing by cutting the pieces to length.
The fully automatic, operator-free operation of the UNICOMPACT storage system in Pleidelsheim is one of its unique features, enabling it to supply the adjacent fully automated KASTOcenter varioplus 2 sawing centre with material via special saw cassettes and automatically longitudinal moving carriages. "Not only was KASTO our first choice for storage systems, but from the very beginning, it was also our front-runner when selecting new saws", the managing director emphasises. This enabled KASTO to automate the process from raw material storage to initial processing to the structured supply of the processed material in loading carriers in one comprehensive solution.
Sawing centre for fully automatic pre-cut parts
The KASTOcenter and the two fully automated sawing machines enable the steel distributor to automatically cut the materials flexibly and quickly. The KASTOsort robot removes the cut pieces from the circular saw, a KASTOvariospeed SC 18, and feeds them into a deburring unit as needed. It then sorts them onto the pallets. The pallet rotation unit provides the robot with a load carrier that precisely fits the material to be sorted. In addition, the system continuously feeds and unloads full and empty containers in the loading and unloading zone. An added feature: the robot automatically attaches a barcode to the cut pieces. This ensures that all data is then available digitally. The production control documents are even available on the pallets.
Hagelauer Dewald uses the second machine, a KASTOtec SC 4 band saw, for large dimensions of up to 260 millimetres in diameter. An apron conveyor positions the cut pieces and pushes them to the desired deposit position, either on a closed table surface or pallets.
Customers demand flexibility and speed
"The KASTO sawing centre is ideal because it fits perfectly with our item-driven business," explains Jörg Bayer. The steel distributor requires maximum flexibility and speed with 100,000 items and 2.5 million saw cuts per year. He assures there is no doubt that investing in the KASTOcenter varioplus 2 has paid off: "We can now provide our customers the exact materials they need. This saves storage space, and their well-paid specialised personnel no longer has to spend time on storage and sawing tasks," Bayer summarises.
The managing director jokes, "Our customers want steel in bags". In fact, machine manufacturers and other steel fabricators order primarily small quantities from Hagelauer Dewald. "Over 60 per cent of all items leave our hall on a single pallet or plastic crate," he adds. The new fully automated sawing centre can easily process many different items without any changeover or dwell times. In summary, Jörg Bayer explains: "This quick availability is a major advancement for us. Anything the customer orders today will be delivered tomorrow – regardless of how small the quantities may be."
