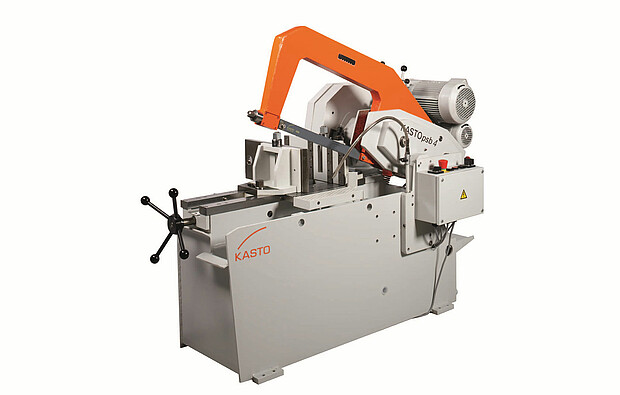

KASTOpsb 4
| Saw type: | Hacksaw |
|---|---|
| Cutting option: | Straight and mitre cut |
| Automation: | Semi automatic |
| Materials: | Structural steels, Stainless steel, Tool steel |
| Material width: | 400 mm / 15.75 inch |
| Material height: | 240 mm / 9.45 inch |
Universal hydraulic system for exclusive or alternating cutting of thin- and thick-walled profiles and full material without change of saw blade.
- KASTO Universal Hydraulic UH
- Coolant system
- Automatic limit stop
- Pendulum vice
- Infinitely adjustable hydraulic cutting pressure
This product is only available in European markets.
Downloads
Technical Data
| Cutting range 90° round | 400 mm | 15.75 in |
| Cutting range 90° flat (W x H) | 400 x 240 mm | 15.75 x 9.45 in |
| Cutting range 90° flat | 320 x 320 mm | 12.6 x 12.6 in |
| Cutting range +45° round | 250 mm | 9.84 in |
| Cutting range +45° flat (W x H) | 250 x 250 mm | 9.84 x 9.84 in |
| Cutting range +45° flat (W x H) | 250 x 320 mm | 9.84 x 12.6 in |
| Cutting range +45° flat | 250 x 250 mm | 9.84 x 9.84 in |
| Cutting range +60° flat (W x H) (Tube) | 180 x 335 mm | 7.09 x 13.19 in |
| Cutting range +60° square (Tube) | 200 x 200 mm | 7.87 x 7.87 in |
| Height, saw head lowered position | 1170 mm | 46.06 in |
| Length | 1830 mm | 72.05 in |
| Width | 710 mm | 27.95 in |
| Height, saw head in highest position | 1605 mm | 63.19 in |
| Material support height | 600 mm | 23.62 in |
| Material support height with rotating foundation frame (accessories) | 700 mm | 27.56 in |
| Total weight | 780 kg | 1719.61 lbm |
| Total power | 4.5 kW | 6.03 hp |
| Saw motor, power | 4 kW | 5.36 hp |
| Dimensions of saw blade: | 600 x 50 x 2 mm | 23.62 x 1.97 x 0.08 in |
| Average cutting speed | 11/13/17/22/26/34m/min | 36.09/42.65/55.77/72.18/85.3/111.55ft/min |
| Stroke speed | 36/45/58/72/90/116m/min | 118.11/147.64/190.29/236.22/295.28/380.58ft/min |
