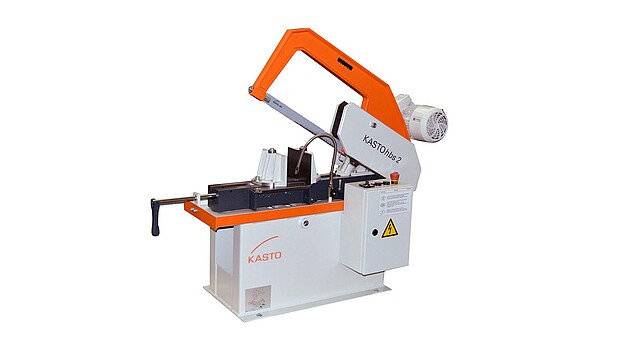

KASTOhbs 2
| Saw type: | Hacksaw |
|---|---|
| Cutting option: | Straight and mitre cut |
| Automation: | Semi automatic |
| Materials: | Structural steels, Stainless steel |
| Material width: | 280 mm |
| Material height: | 180 mm |
The KASTO power hacksaw is the right choice when metal is only cut occasionally. The saw is very universal in use and especially space saving due to the small dimensions.
- Coolant system
- Fully hydraulic feed control
- Pendulum vice
This product is only available in European markets.
Downloads
KASTOhbs 2 at the KASTOshop Asia Pacific
To the KASTOshopTechnical Data
| Cutting range 90° round | 250 mm | 9,84 in |
| Cutting range 90° flat (W x H) | 280 x 180 mm | 11,02 x 7,09 in |
| Cutting range 90° square | 230 x 230 mm | 9,06 x 9,06 in |
| Cutting range +45° round | 180 mm | 7,09 in |
| Cutting range +45° flat (W x H) | 170 x 200 mm | 6,69 x 7,87 in |
| Cutting range +45° flat (W x H) | 155 x 235 mm | 6,1 x 9,25 in |
| Cutting range +45° square | 170 x 170 mm | 6,69 x 6,69 in |
| Length | 1435 mm | 56,5 in |
| Width | 564 mm | 22,2 in |
| Height, saw head lowered position | 949 mm | 37,36 in |
| Height, saw head in highest position | 1261 mm | 49,65 in |
| Material support height | 500 mm | 19,69 in |
| Material support height with rotating foundation frame (accessories) | 555 mm | 21,85 in |
| Total weight | 215 kg | 473,99 lbm |
| Total power | 2 kW | 2,68 hp |
| Saw motor, power | 0,8/1 kW | 1,07/1,34 hp |
| Average cutting speed | 16/32 m/min | 0,63/1,26 in/min |
| Stroke speed | 62/125 m/min | 2,44/4,92 in/min |
| Dimensions of saw blade | 450 x 40 x 2 mm | 17,72 x 1,57 x 0,08 in |
