KASTOflex A
| Saw type: | Circular saw |
|---|---|
| Cutting option: | Straight and mitre cut |
| Automation: | Automatic |
| Materials: | Structural steels, Stainless steel |
| Material width: | 200 mm / 7.87 inch |
| Material height: | 100 mm / 3.94 inch |

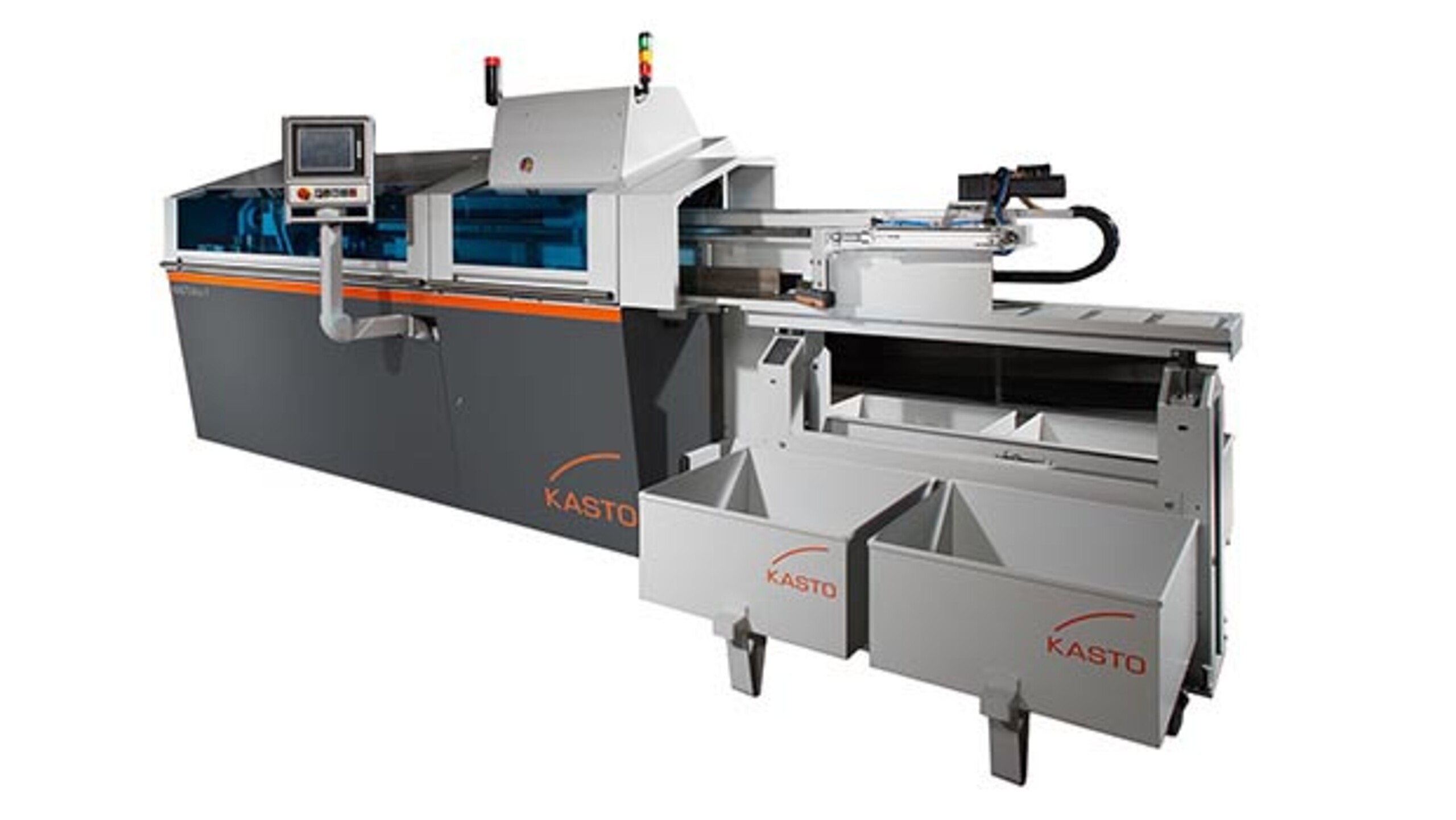

Universal circular saw used in machine shops and serial production alike to cut profiles, tubes and solids.
- An ergonomic work height and good accessibility – the enclosure opens wide – make flexible single cutting easy
- The full enclosure provides an excellent view of the working area and guarantees safe automatic operation

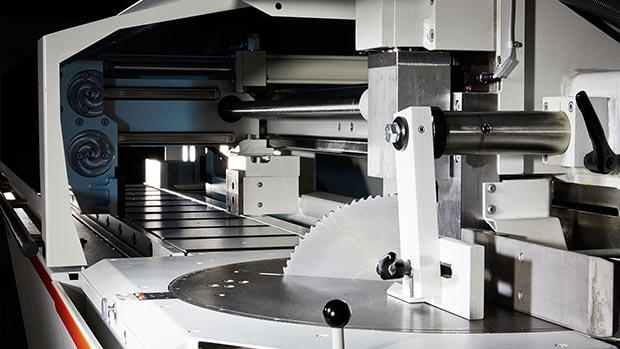

- The material clamping vice opens to both sides for a touch-free return stroke

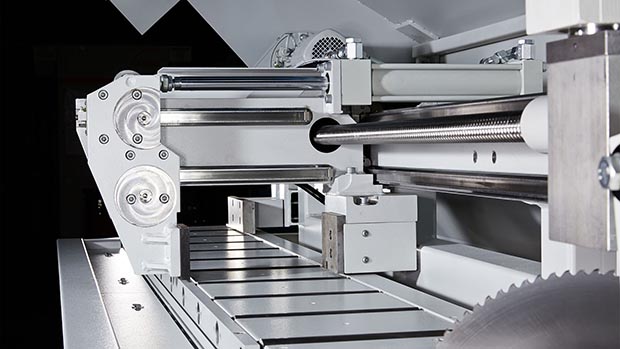

- A sturdy linear-guided material feed, powered via ball lead screw, ensures accurate cut-piece lengths
- More flexibility with highest efficiency when doing serial cuts
Downloads
Technical Data
| With saw blade diameter 450 mm/17.72 in | ||
| Cutting range 90° round | 150 mm | 5.91 in |
| Cutting range 90° flat (W x H) | 200 x 100 mm | 7.87 x 3.94 in |
| Cutting range 90° Square (W x H) | 140 x 140 mm | 5.51 x 5.51 in |
| Cutting range 45° round | 145 mm | 5.71 in |
| Cutting range 45° flat (W x H) | 160 x 80 mm | 6.3 x 3.15 in |
| Cutting range 45° Square (W x H) | 120 x 120 mm | 4.72 x 4.72 in |
| Cutting range 60° round | 115 mm | 4.53 in |
| Cutting range 60° flat (W x H) | 120 x 60 mm | 4.72 x 2.36 in |
| Cutting range 60° Square (W x H) | 100 x 100 mm | 3.94 x 3.94 in |
| Minimum material height with flat material | 8 mm | 0.31 in |
| Remnant length in automatic cycle at 90° | 35 mm | 1.38 in |
| Remnant length in automatic cycle at 45° | 95 mm | 3.74 in |
| Length | 3660 mm | 144.09 in |
| Width | 1200 mm | 47.24 in |
| Height | 1900 mm | 74.8 in |
| Material support height | 1050 mm | 41.34 in |
| Weight of machine | 2500 mm | 98.43 in |
| Total connected load | 6/8 kW | 8.05/10.73 hp |
| Connected load of coolant pump | 0.1 kW | 0.13 hp |
| Pole changing saw drive | 1.4/2.2 kW | 1.88/2.95 hp |
| Frequency regulated drive (option) | 4 kW | 5.36 hp |
| Pole changing cutting speed | 12/24 m/min | 39.37/78.74 ft/min |
| Infinitely variable cutting speed (option) | 10 - 60 m/min | 32.81 - 196.85 ft/min |
| Direct entry of measures up to | 9999 mm | 393.66 in |
| Max. tolerance of straightness | 12 mm/6 mm | 0.47 in/0.24 in |
| Material feed length, individual cut at 90° | 2030 mm | 79.92 in |
| Material feed length, individual cut at 45° | 1970 mm | 77.56 in |
| Saw feed speed range | 10 - 520 mm/min | 0.39 - 20.47 in/min |
| Rapid return of the saw blade | 2000 mm/min | 78.74 in/min |
| Material feed speed | 0 - 20 m/min | 0 - 65.62 ft/min |
| Max. clamping power of material feed vice | 12500 N | 9219.53 ft/lbs |
| Max. clamping power of vertical vice | 25000 N | 18439.05 ft/lbs |
| Reducible clamping power: option | ||
| Diameter of saw blade, special flange: option | 350 mm | 13.78 in |
| Reception boring according to DIN 8576 | 40/4 x 11/63 mm | 1.57/0.16 x 0.43/2.48 in |
| Diameter of saw blade | 400/ 450 mm | 15.75/ 17.72 in |
| Reception boring according to DIN 8576 with intermediate ring | 50/4 x 14/80 mm | 1.97/0.16 x 0.55/3.15 in |
