KASTOtec FC 5

Saw type:Bandsaw
Cutting option: Straight cut
Automation:Automatic
Materials: Structural steels, Stainless steel, Tool steel, Steels for special application
Material width: 530 mm / 20.87 inch
Material height: 530 mm / 20.87 inch

Fully hydraulic and automatic high-performance bandsawing machine of robust construction, with saw blade moving parallel in horizontal direction, for cutting of round, square and flat material, of tubes and profiles of all qualities, particularly for tool steels and material which is difficult to cut such as titanium, Hastelloy, Inconel etc.

  • Sawband guide via hydraulically pretensioned carbide slideways
  • Electronic monitoring of the hydraulic blade tension
  • Infinitely variable cutting speed, to be adjusted at central control panel
  • Fully automatic, rapid height adjustment of the saw unit via light barrier
  • Hydraulic horizontal vices, clearance stroke is standard

Your KASTO Contact

Sales

+49 7841 61-100

kasto(at)kasto.com

Technical Data

Cutting range round 530 mm 20.87 in
Cutting range square (W x H) 530 x 530 mm 20.87 x 20.87 in
Cutting range flat (W x H) 530 x 530 mm 20.87 x 20.87 in
Clamping range 0 - 630 mm 0 - 24.8 in
Smallest size to be cut 10 x 10 mm 0.39 x 0.39 in
Smallest size to be cut in magazine operation with change of bar 20 x 20 mm 0.79 x 0.79 in
Shortest length of cut-off piece 10 mm 0.39 in
Shortest remnant length in automatic operation, possible only if the material has a perfect geometric surface 35 mm 1.38 in
Shortest remnant length in magazine operation with change of bar, possible only if the material has a perfect geometric surface 50 mm 1.97 in
Shortest remnant length individual cut 10 mm 0.39 in

Length with material feed length 600 mm 2235 mm 87.99 in
Length with material feed length 1500 mm 3190 mm 125.59 in
Length with material feed length 3000 mm 4870 mm 191.73 in
Width incl. chip conveyor 5335 mm 210.04 in
Height 2820 mm 111.02 in
Material support height 950 mm 37.4 in
Total weight with material feed length 600 mm 6550 kg 14440.28 lbm
Total weight with material feed length 1500 mm 7250 kg 15983.51 lbm
Total weight with material feed length 3000 mm 8150 kg 17967.67 lbm

Total connected load 25 kW 33.53 hp

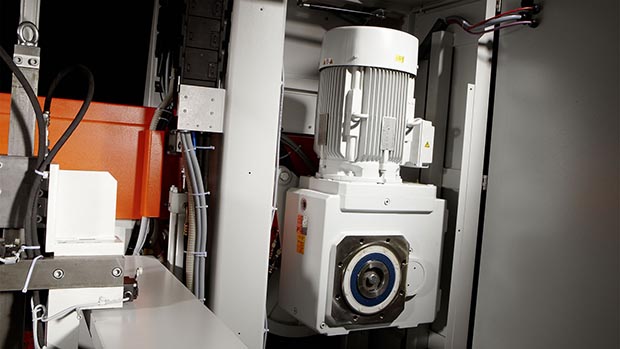

Power of saw motor 15.5 kW 20.79 hp
Power at running wheel 14 kW 18.77 hp
Cutting speed infinitely variable with 50 or 60 Hz 30 - 300 m/min 98.43 - 984.25 ft/min
Optional cutting speed 8 - 80 m/min 26.25 - 262.47 ft/min
Saw feed speed 0.5 - 300 m/min 1.64 - 984.25 ft/min

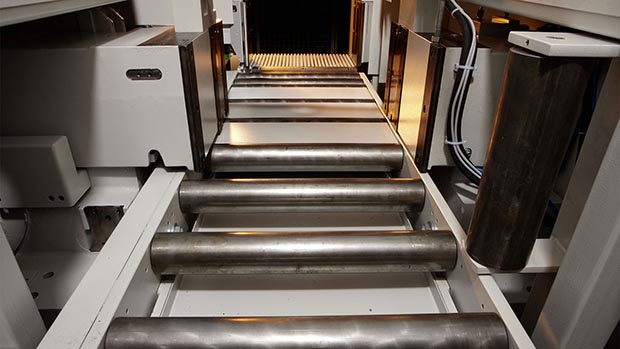

Automatic material feed length, single stroke 600 mm 23.62 in
Automatic material feed length, multiple stroke, if there is enough space to deposit the material on the cut-off side 9999 mm 393.66 in
Dimensions of saw blade 7675 x 54 x 1.6 mm 302.17 x 2.13 x 0.06 in
