KASTOtec AM 8

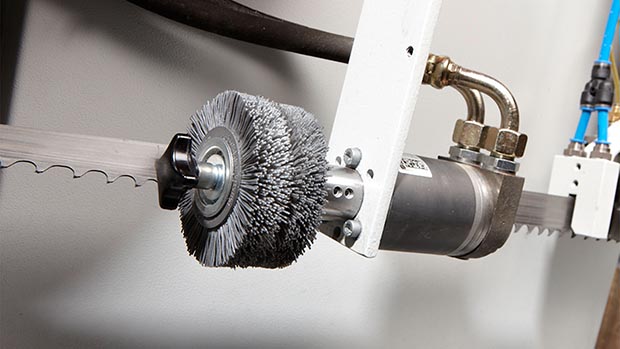

![[Translate to English:] KASTOtec AM 4/5/6 – feingewuchtete Laufräder, Zentralschmieranlage für Laufrad- und Laufrollenlagerung, ruhiger, werkzeugschonender Lauf, kurze Spanbildung für maximale Schnittqualität.](/fileadmin/KASTO/_245_Saegen/_302_Bandsaegen/KASTOtec_AM_4_5_6/KASTOtec_AM_4_5_6_049.jpg)
![[Translate to English:] KASTOtec AM 4/5/6 – feingewuchtete Laufräder, Zentralschmieranlage für Laufrad- und Laufrollenlagerung, ruhiger, werkzeugschonender Lauf, kurze Spanbildung für maximale Schnittqualität.](/fileadmin/_processed_/b/d/csm_KASTOtec_AM_4_5_6_049_f12a87d227.jpg)
| Saw type: | Bandsaw |
|---|---|
| Cutting option: | Straight cut |
| Automation: | Automatic |
| Materials: | Non-ferrous metals and plastics |
| Material width: | 830 mm / 32.68 inch |
| Material height: | 830 mm / 32.68 inch |
Band saws for sawing pipes, profiles and solid materials with maximum efficiency.
The KASTOtec AM gas been specially developed for economical, high-speed sawing of all of the most popular aluminium materials.

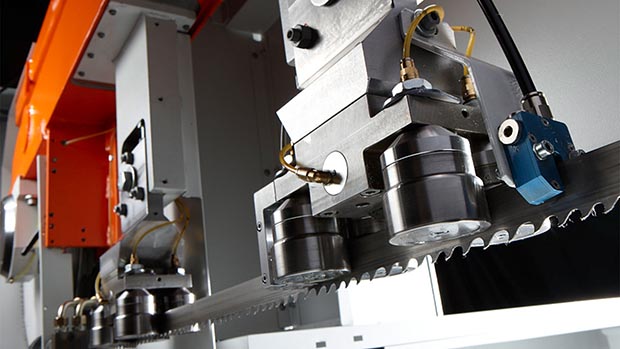

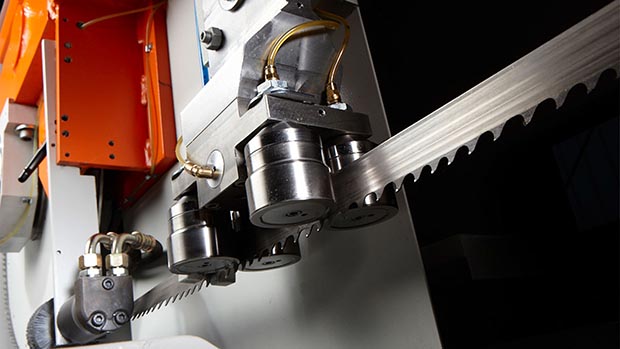

- Specially developed band guides support the tool and create short chips

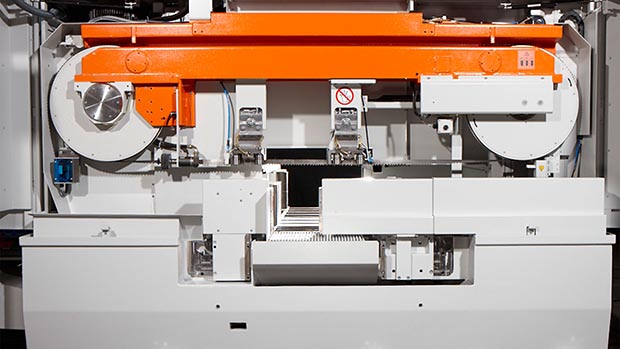

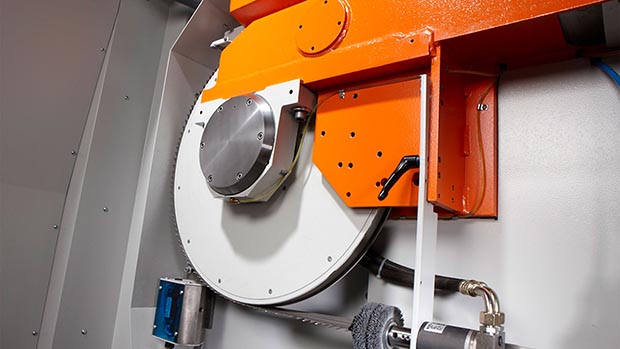

- Finely balanced wheels
- Central lubricating system for wheel bearings and roller bearings
- Finely balanced drive elements make fast cutting speeds possible
- Easy on tools and quiet-running
Downloads
Technical Data
| Cutting range round | 830 mm | 32.68 in |
| Cutting range square (W x H) | 830 x 830 mm | 32.68 x 32.68 in |
| Cutting range flat (W x H) | 830 x 830 mm | 32.68 x 32.68 in |
| Clamping range | 0 - 830 mm | 0 - 32.68 in |
| Smallest size to be cut | 20 x 20 mm | 0.79 x 0.79 in |
| Shortest length of cut-off piece | 8 mm | 0.31 in |
| Shortest remnant length in automatic operation, possible only if the material has a perfect geometric surface | 50 mm | 1.97 in |
| Shortest remnant length individual cut | 20 mm | 0.79 in |
| Length | 2710 mm | 106.69 in |
| Width incl. chip conveyor | 4900 mm | 192.91 in |
| Height | 3140 mm | 123.62 in |
| Material support height | 730 mm | 28.74 in |
| Total weight | 12000 kg | 26455.47 lbm |
| Total connected load | 30 kW | 40.23 hp |
| Power of saw motor | 22 kW | 29.5 hp |
| Power at running wheel | 20.5 kW | 27.49 hp |
| Cutting speed range | 100-800 m/min | 328.08-2624.67 ft/min |
| Saw feed speed | 20-1000 m/min | 65.62-3280.84 ft/min |
| Automatic material feed length, single stroke | 750 mm | 29.53 in |
| Automatic material feed length, multiple stroke | 9999 mm | 393.66 in |
| Dimensions of saw blade | 9.195 x 54 x 1,3 mm | 362.01 x 2.12 x 0.05 in |
