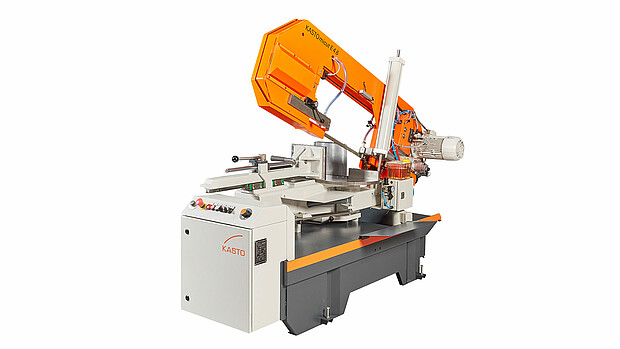

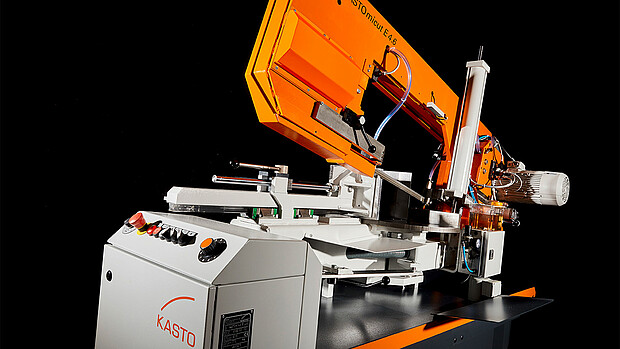

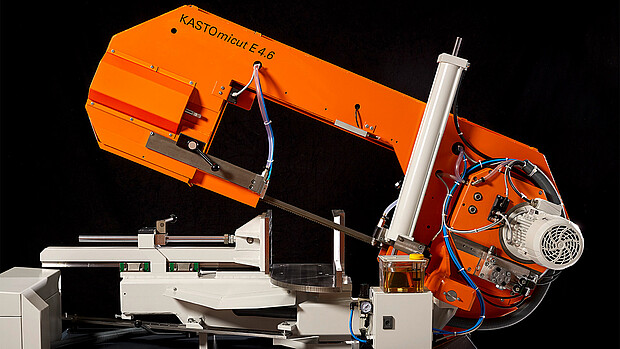

KASTOmicut E 4.6
| Saw type: | Bandsaw |
|---|---|
| Cutting option: | Straight and mitre cut |
| Automation: | Semi automatic |
| Materials: | Structural steels, Stainless steel, Tool steel |
| Material width: | 460 mm / 18.11 inch |
| Material height: | 335 mm / 13.19 inch |
Universal pivot-frame bandsaw for single-sided mitre cuts
The KASTOmicut E 4.6 is a compact and powerful bandsaw, specially designed for cutting round and flat material at single-sided mitre angles. With its continuously adjustable mitre setting up to +60°, it is ideal for a wide range of workshop and production applications.
The hydraulically controlled feed movement ensures precise and consistent cuts. Both the blade and material are clamped mechanically – robust and low-maintenance. A particularly clever feature: the pivot point of the saw unit is located exactly at the intersection of the saw blade and the material support edge. This eliminates the need for length correction when changing the mitre angle – saving time and improving efficiency.
The continuously adjustable cutting speed allows optimal adaptation to different material grades. This makes the KASTOmicut E 4.6 a truly universal solution for demanding metal cutting applications.
Your benefits at a glance
- Hydraulically controlled saw feed for consistently precise cuts

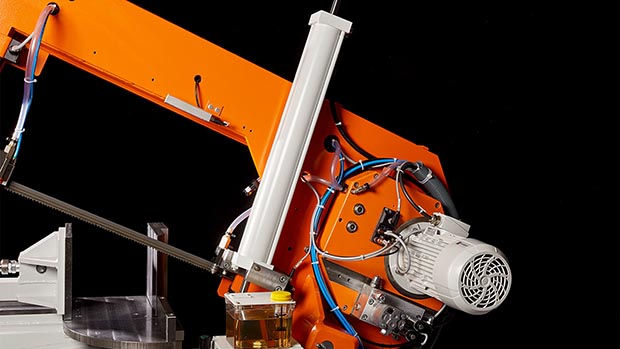

- Frequency-controlled saw drive – continuously adjustable for optimal cutting performance

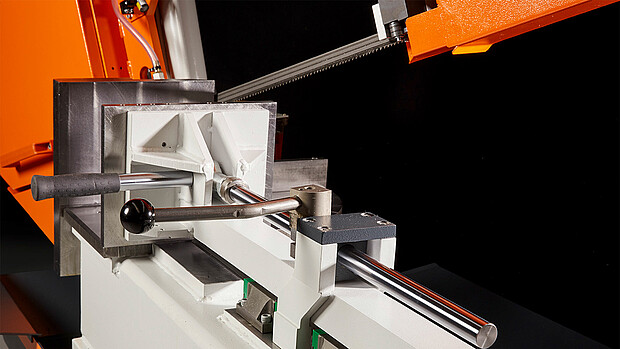

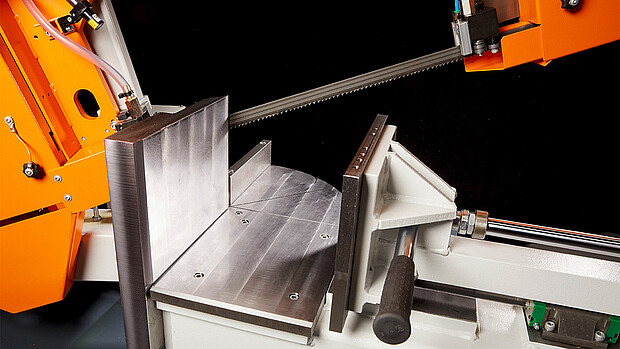

- Mechanically clamping, linear-guided movable vice

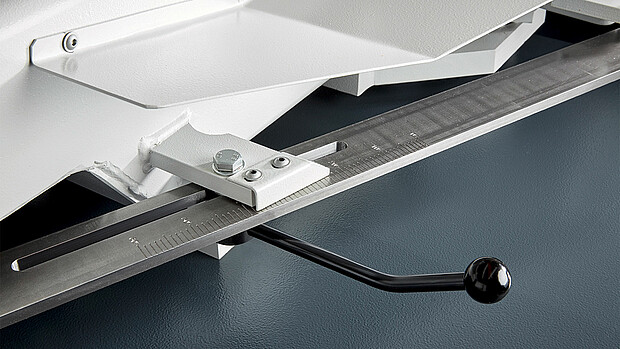

- Continuously adjustable mitre setting up to +60°
- Continuously adjustable saw arm position for easy and precise alignment
Downloads
KASTOmicut E 4.6 at the KASTOshop Asia Pacific
To the KASTOshopTechnical Data
| Cutting range 90° round (Solid/Tube) | 160 mm | 6.3 in |
| Cutting range 90° flat (W x H) (Tube) | 460 x 335 mm | 18.11 x 13.19 in |
| Cutting range 90° square (Solid/Tube) | 160 x 160 / 335 x 335 mm | 6.3 x 6.3 / 13.19 x 13.19 in |
| Cutting range 45° round (Tube) | 320 mm | 12.6 in |
| Cutting range +45° flat (W x H) (Tube) | 280 x 335 mm | 11.02 x 13.19 in |
| Cutting range +45° square (W x H) (Tube) | 300 x 300 mm | 11.81 x 11.81 in |
| Cutting range +60° round (Tube) | 210 mm | 8.27 x 0 in |
| Cutting range +60° flat (W x H) (Tube) | 180 x 335 mm | 7.09 x 13.19 in |
| Cutting range +60° square (W x H) (Tube) | 200 x 200 mm | 7.87 x 7.87 in |
| Shortest remnant length | 30 mm | 1.18 in |
| Smallest diameter to be cut | 10 mm | 0.39 in |
| Length | 855 mm | 33.66 in |
| Width | 2220 mm | 87.4 in |
| Height, saw head lowered position | 1240 mm | 48.82 in |
| Height, saw head in highest position | 1950 mm | 76.77 in |
| Material support height | 700 mm | 27.56 in |
| Total weight | 755 kg | 1664.49 lbm |
| Total power | 2 kW | 2.68 hp |
| Saw motor, power – frequency controlled | 1.5 kW | 2.01 hp |
| Cutting speed infinitely variable – frequency controlled | 20 - 110 m/min | 65.62 - 360.89 ft/min |
| Dimensions of saw blade | 3180 x 27 x 0.9 mm | 125.2 x 1.06 x 0.04 in |

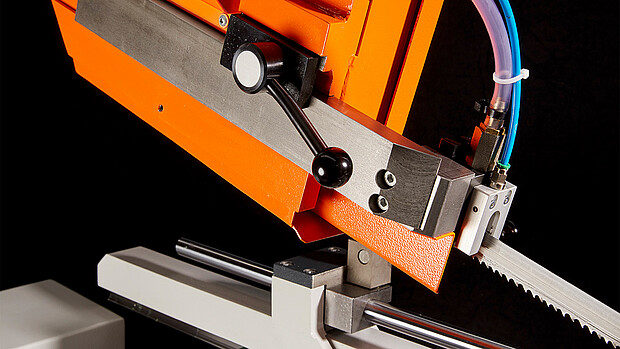

| Saw blade guides | roller guide and back roller, replaceable | |
| Material clamping | mechanical | |
| Cutting feed | hydraulic, infinitely variable | |

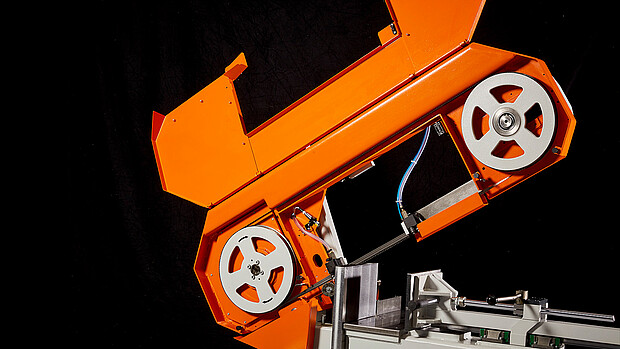

| Saw blade tension | mechanical | |
| Saw blade cleaning | by synchronously running, easily replaceable wire brush |
