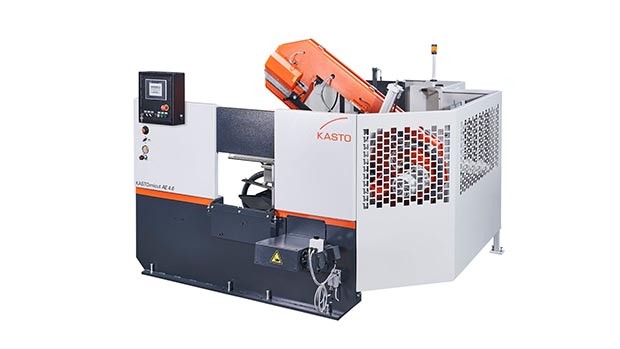

KASTOmicut AE 4.6
| Saw type: | Bandsaw |
|---|---|
| Cutting option: | Straight and mitre cut |
| Automation: | Automatic |
| Materials: | Structural steels, Stainless steel, Tool steel |
| Material width: | 460 mm / 18.11 inch |
| Material height: | 335 mm / 13.19 inch |

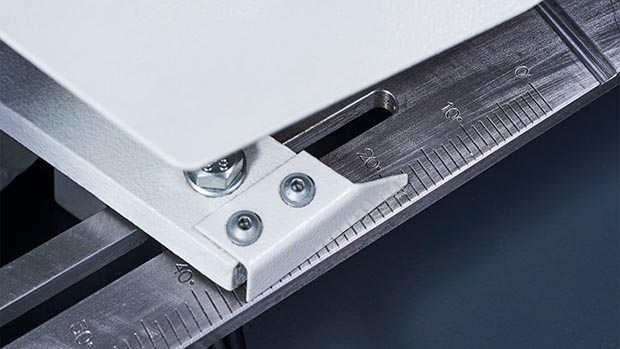

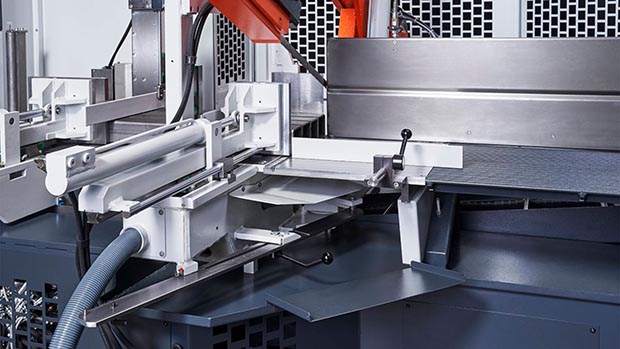

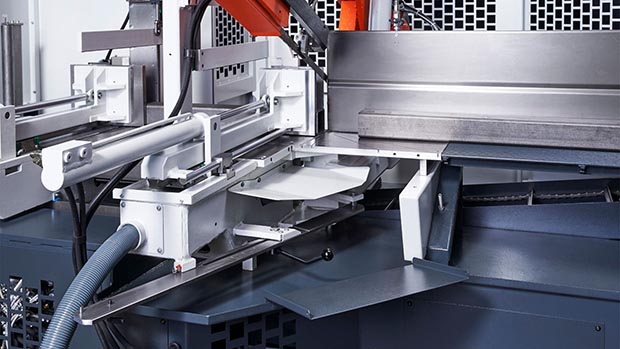

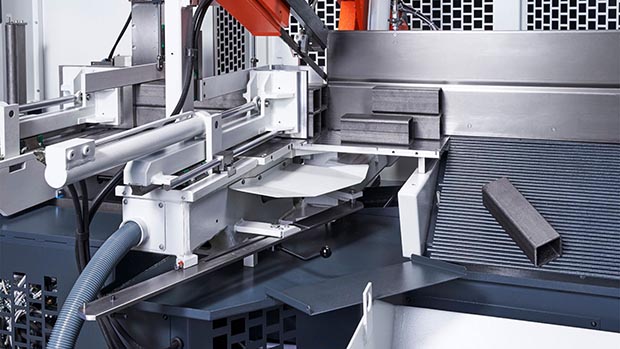

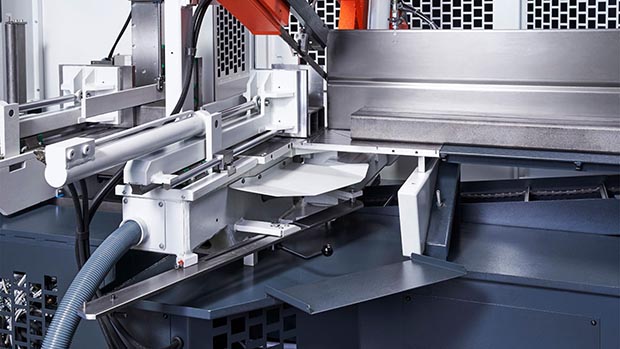

Fully hydraulic automatic band sawing machine of solid construction, designed for the consistent solution of any cutting-to-length or mitre cutting tasks in the case of beams, tubes and profiles. Coolant device for sawing solid materials in straight cuts with emulsion cooling in workshops. In addition to straight cuts, mitres can be cut very flexibly and quickly by adjusting the saw head very easily to the right by 60°. The mitre angle is adjusted via an easy to read angular scale. Straight and mitre cuts up to +45° to the right are carried out in automatic operation, cuts up to +60° to the right are carried out in semi-automatic operation. The infinitely adjustable cutting speed and the fully hydraulic, infinitely adjustable cutting feed allow a sensitive and blade-saving cutting.
The standard AdvancedControl offers the optimum operation of the machine. Easy and clearly arranged job entry via job wizard. After making the desired number of cuts, the machine shuts off automatically. By reducing set-up times to a minimum, maximum cutting performances are achieved in automatic mode. The precise drive via ball bearing spindle in material feed guarantees an accurate material length positioning.
Due to these standard equipments, economic working processes are achieved when cutting individual pieces, smaller and average lot sizes and large series.
- Hydraulically controlled saw feed
- Work-friendly material support height

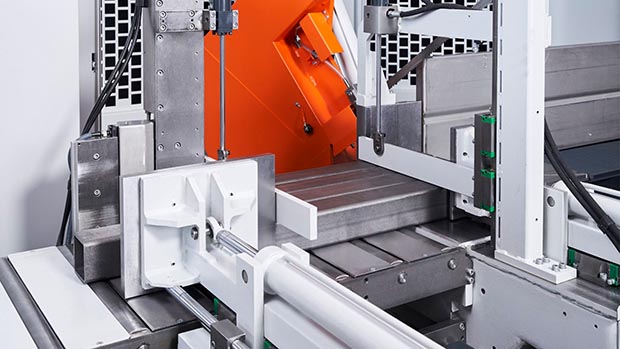

- Hydraulic material clamping
- Infinitely adjustable cutting speed
- Mitre angle on both sides from +60° to -45°
- Straight and mitre cuts up to +45° to the right are carried out in automatic operation
- Straight and mitre cuts up to +60° to the right are carried out semi-automatic operation
Downloads
Technical Data

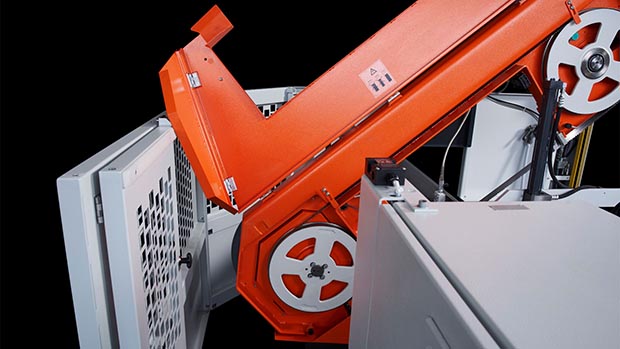

| Cutting range 90° round (Solid/Tube) | 160 mm / 335 | 6.3 / 335 in |
| Cutting range 90° flat (W x H) (Tube) | 460 x 335 mm | 18.11 x 13.19 in |
| Cutting range 90° square (Solid/Tube) | 160 x 160 / 335 x 335 mm | 6.3 x 6.3 / 13.19 x 13.19 in |
| Cutting range +45° round (Tube) | 320 mm | 12.6 in |
| Cutting range +45° flat (W x H) (Tube) | 280 x 335 mm | 11.02 x 13.19 in |
| Cutting range +45° square (Tube) | 300 x 300 mm | 11.81 x 11.81 in |
| Cutting range +60° round (Tube) | 210 mm | 8.27 x 0 in |
| Cutting range +60° flat (W x H) (Tube) | 180 x 335 mm | 7.09 x 13.19 in |
| Cutting range +60° square (Tube) | 200 x 200 mm | 7.87 x 7.87 in |
| Material feed length, individual cut | 700 mm | 27.56 in |
| Material feed length, multiple feed | 9999 mm | 393.66 in |
| Smallest diameter to be cut | 10 mm | 0.39 in |
| Shortest cut-off length individual cut and automatic operation | 15 mm | 0.59 in |
| Shortest remnant length individual cut | 30 mm | 1.18 in |
| Shortest remnant length automatic operation | 225 mm | 8.86 in |
| Length | 2763 mm | 108.78 in |
| Width | 2502 mm | 98.5 in |
| Height, saw head lowered position | 1714 mm | 67.48 in |
| Height, saw head in highest position | 1932 mm | 76.06 in |
| Material support height | 700 mm | 27.56 in |
| Total weight | 2100 kg | 4629.71 lbm |
| Total power | 2.5 kW | 3.35 hp |
| Saw motor, power – frequency controlled | 1.5 kW | 2.01 hp |
| Cutting speed infinitely variable – frequency controlled | 20 - 110 m/min | 65.62 - 360.89 ft/min |
| Dimensions of saw blade | 3830 x 27 x 0.9 mm | 150.79 x 1.06 x 0.04 in |

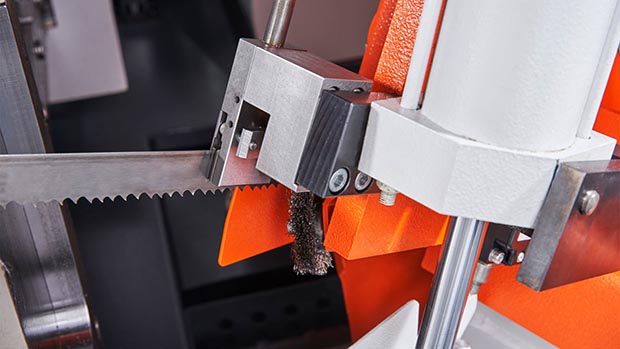

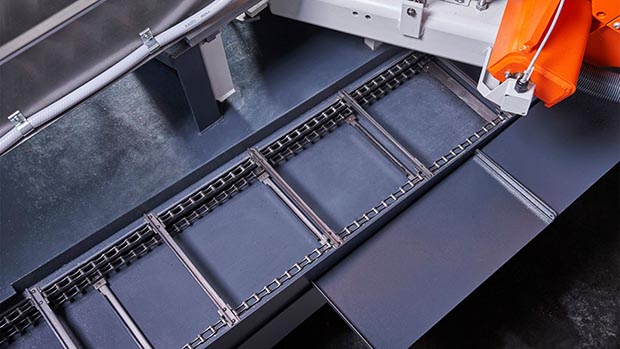

| Saw blade guides | carbide guide and back roller, replaceable | |
| Material clamping | hydraulic | |
| Cutting feed | hydraulic, infinitely variable | |
| Saw blade tension | mechanical | |
| Saw blade cleaning | by synchronously running, easily replaceable wire brush |
