KASTObbs A

Saw type:Bandsaw
Cutting option: Vertical cut
Automation:Automatic
Materials: Structural steels, Stainless steel, Steels for special application, Tool steel
Material width: 1960 mm / 77.16 inch
Material height: 520 mm / 20.47 inch

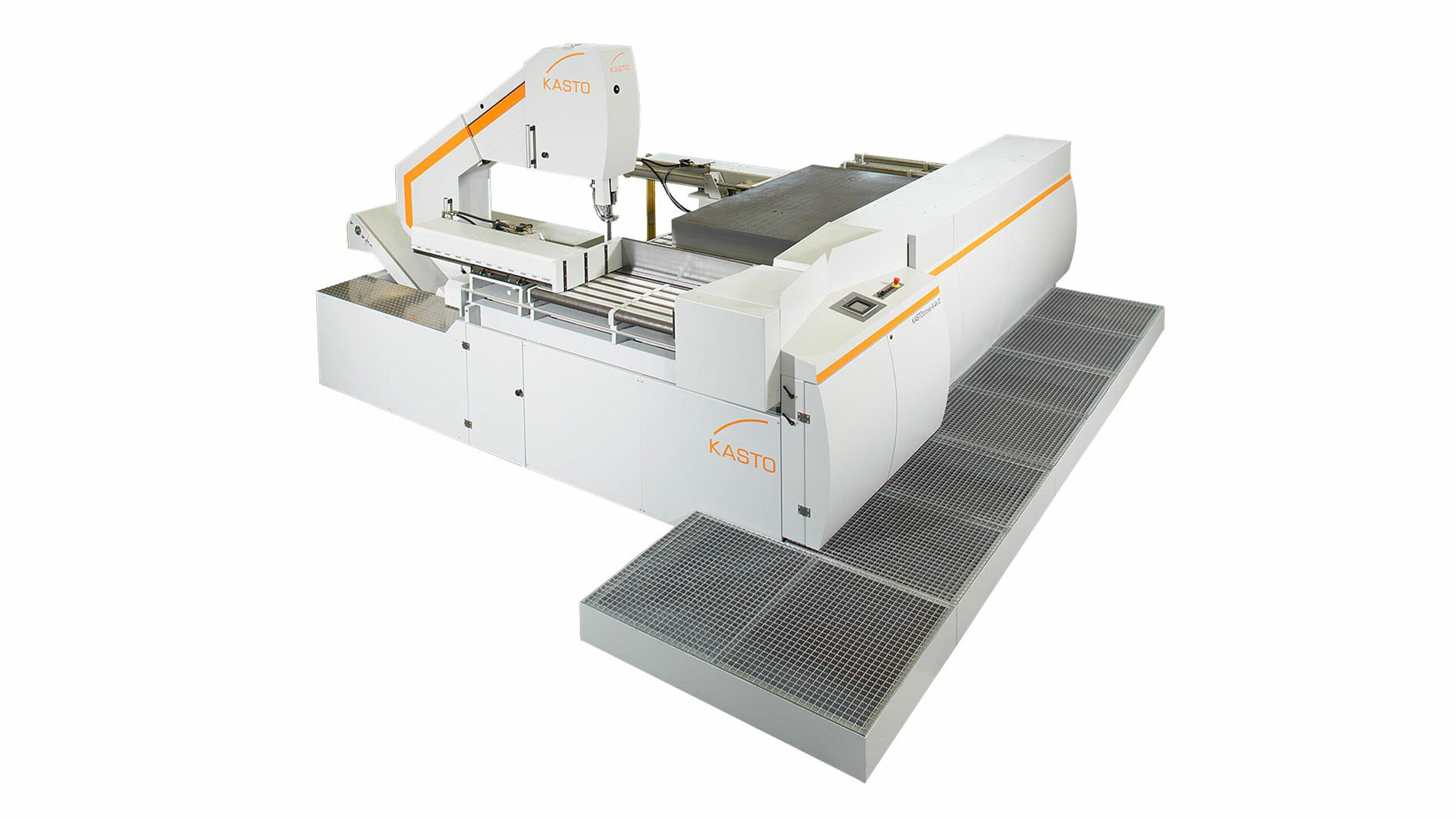

The space-saving block bandsawing machine for more flexibility.

Is it your job to cut different dimensions from different plates and blocks from your existing material using the longitudinal cutting method?

Does the majority of your cutting tasks consist of cutting heavy blocks including billets and plates and/or rectangular or flat materials? If so, you will find a sawing machine that suites your needs amongst the automatic block bandsawing machines from the KASTObbs A series.

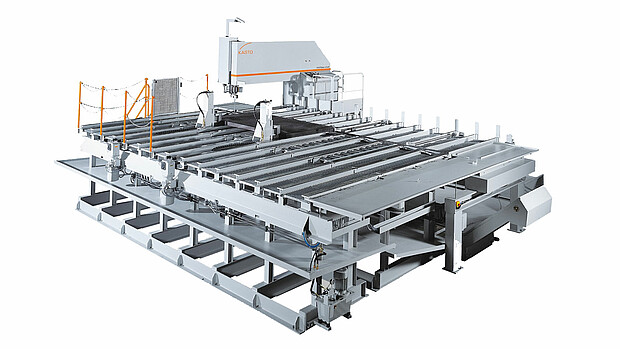

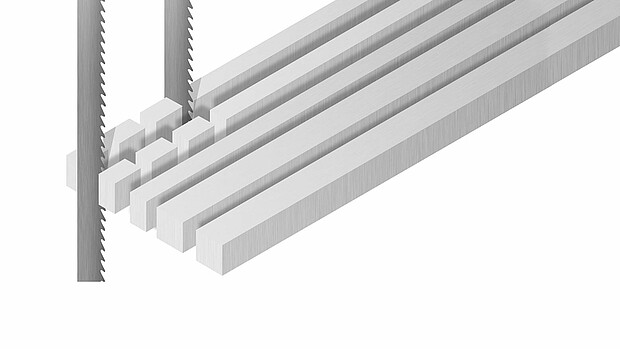

Thanks to the optional 90° blade twist and longitudinal cutting method, smaller blocks can be dimensioned and cut fully automatically from one block. The automatic material feed device positions the blocks and plates precisely in the desired position. KASTO block and plate sawing machines are installed on the floor and can be repositioned if needed. This provides maximum processing and positioning flexibility. Since the machine moves, the footprint is reduced by approx. 50%, resulting in lower occupancy costs.

Additional features of the KASTObbs A block bandsaw:

  • Infinitely variable bandsaw blade speed
  • By using bi-metal or carbide saw blades, all material qualities, including difficult-to-cut materials such as titanium, Hastelloy and Inconel can be cut with high cutting performance.
  • The smooth running and vibration-free operation guarantees accurate results – the result: shorter cutting times and longer tool life



The KASTObbs A is available in the following variants

  • KASTObbs A 3 x 20
  • KASTObbs A 3 x 30
  • KASTObbs A 4 x 16
  • KASTObbs A 8 x 20



Technical data and an overview of the different models can be found in our brochure.
