KASTOmiwin A 4.6
| Saw type: | Bandsaw |
|---|---|
| Cutting option: | Straight and mitre cut |
| Automation: | Automatic |
| Materials: | Structural steels, Stainless steel, Tool steel |
| Material width: | 460 mm / 18.11 inch |
| Material height: | 360 mm / 14.17 inch |

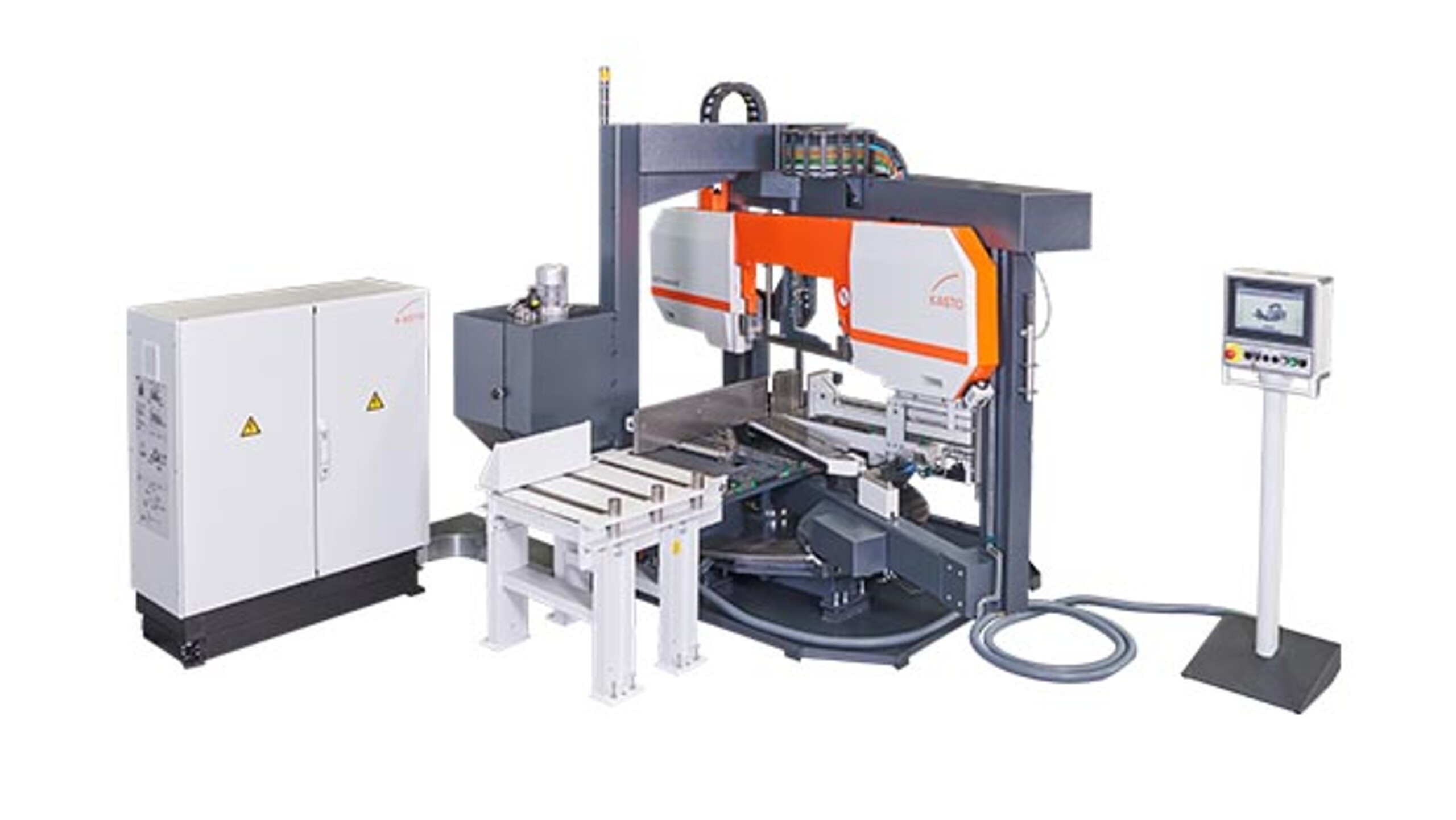

Two-column guided band saw for straight and miter cutting in steel trade and workshop.
This two-column guided band saw for single cuts and miter jobs (-45 ° / + 60 °) is characterized by a frequency-controlled, infinitely adjustable blade speed (12-150 m / min), a cutting strip, which is turning with the saw head, of wear-resistant spring steel as Material support, an electric motor-driven saw feed and a hydrau-lic material clamping. The hydraulic material clamping is automatically hydraulically shifted depending on the positive or negative cutting angle.
All advantages at a glance::
- Fast, accurate material feed with gear rack
- No wear of the material support due to swinging support table right next to the sawblade
- Low burr formation
- Exact parallel material clamping due to movable vice. Parts can’t jam (Wedge).
- Optimized cutting times through KASTOrespond
- Constant saw feed by means of ball screw spindle
- Electrically powered chip removal brush
- Low torsional load (bladetwist) on the sawblade for a long bladelife
- Automatic electric guidearm adjustment
- Accurate mitre positioning
Downloads
Technical Data
| Cutting range 90° round | 360 mm | 14.17 in |
| Cutting range 90° flat (W x H) | 460 x 360 mm | 18.11 x 14.17 in |
| Cutting range 90° square | 360 x 360 / 335 x 335 mm | 14.17 x 14.17 / 13.19 x 13.19 in |
| Cutting range +/-45° round | 360 mm | 14.17 in |
| Cutting range +/-45° flat (W x H) | 340 x 340 mm | 13.39 x 13.39 in |
| Cutting range +/-45° square (W x H) | 340 x 340 mm | 13.39 x 13.39 in |
| Cutting range +60° round | 250 mm | 9.84 in |
| Cutting range +60° flat (W x H) | 240 x 340 mm | 9.45 x 13.39 in |
| Cutting range +60° square (W x H) | 240 x 240 mm | 9.45 x 9.45 in |
| Shortest remnant length individual cut | 30 mm | 1.18 in |
| Shortest remnant length in automatic operation (with 90° cuts) | < 150 mm | < 5.91 in |
| Shortest cut-off length | 20 mm | 0.79 in |
| Smallest diameter to be cut in round material | 30 mm | 1.18 |
| Smallest dimension to be cut in flat material (W x H) | 30 x 20 mm | 1.18 x 0.79 in |
| Maximum bar weight | 400 kg/m | 22.4 lmb/in |
Cutting of flat material < 20 mm height is not possible in automatic mode.
Automatic angular cutting is not possible in round material.
For material with a perfect geometric surface an accuracy of length of cut-off pieces in accordance with ISO 2768-1, degree of accuracy medium is achievable with individual bars, cut-off pieces longer 6 mm and mitre cuts. Apart from that, degree of accuracy fine is achievable.
| Length (material feed 1500 mm) | 3570 mm | 140.55 in |
| Length (option: material feed 3000 mm) | 5070 mm | 199.61 in |
| Width | 2920 mm | 114.96 in |
| Height, machine head in highest position | 1950 mm | 76.77 in |
| Material support height | 700 mm | 27.56 in |
| Total weight (material feed 1500 mm) | 4400 kg | 9700.34 lbm |
| Total weight (option: material feed 3000 mm) | 4900 kg | 10802.65 lbm |
| Total power | 6 kW | 8.05 hp |
| Power of saw motor | 4 kW | 5.36 hp |
| Cutting speed | 12 - 150 m/min | 39.37 - 492.13 ft/min |
| Dimensions of saw blade | 6190 x 41 x 1.3 mm | 243.7 x 1.61 x 0.05 in |
| Saw blade tension | hydraulic | |
| Saw blade cleaning | driven, easy to exchange brush | |
| Saw blade guides | carbide, exchangeable | |
| Micro-spray lubrication system | Filling: 1.8 l. Incl. 3 l cooling lubricant. Working pressure at least 5 bar. |
