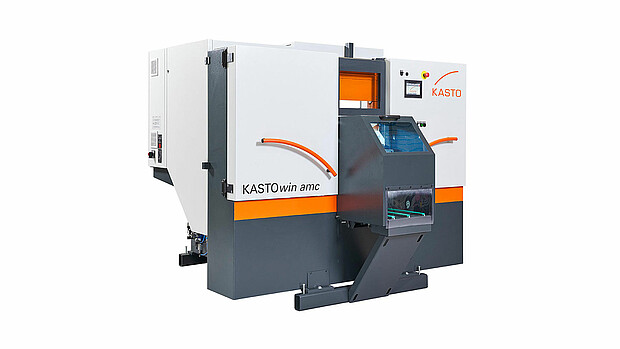

KASTOwin amc - additive manufacturing cutting
Created as the final missing step in the process chain:
- Innovative sawing concept for additively manufactured components
- Accurate cut positioning to minimize tolerance requirement of the printing area
- Easy, user-friendly handling
- Closed work space
- Machine prepared for a customer-supplied suction unit
Key features of the saw specially developed for cutting additively manufactured components:
- High-performance band saw machine for individual cuts of additively manufactured components of materials which are difficult to cut
- Optimum operator protection - full machine covering according to the latest CE criteria

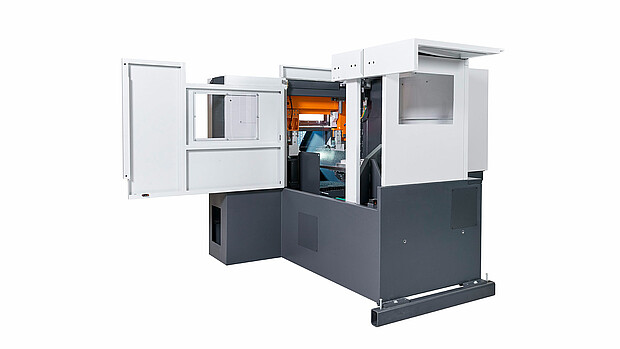

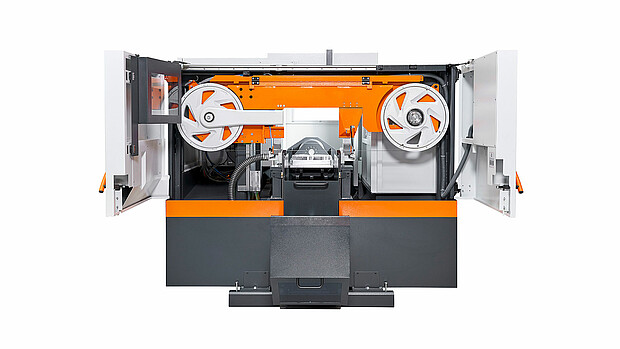

- A simple, easily accessible machine cover allows the operator to load and unload the base plate by opening the protective doors

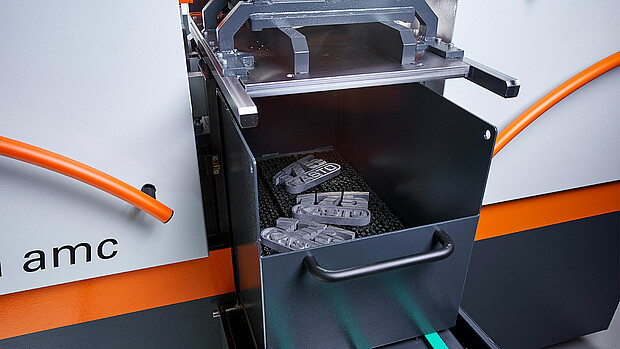

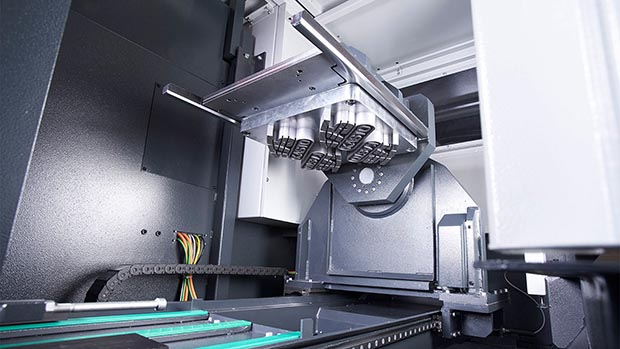

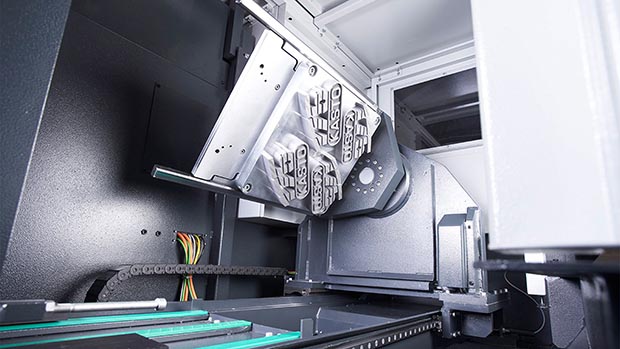

- Automatic operated turning device - precise positioning of the workpieces at 180°. The cut-off components fall into a correspondingly prepared collecting container in order to prevent any unnecessary risk to the operator or to damage the components
- Machine prepared for connection to a suction unit provided by the customer
- Fast movement by servo drives and ball screw spindle for material feed (turning device) and linear-guided saw frame
- Effective material utilization by input of the plate thickness with subsequent automatic height adjustment of the saw unit

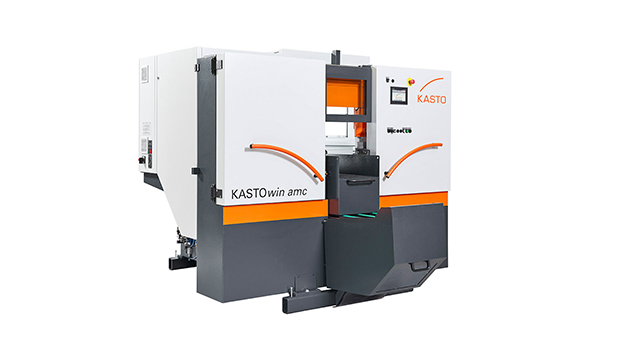

- Visual inspection window in the material removal flap / individual removal of the components possible by simple machine pausing
